10M ELECTRIC SCISSOR LIFT

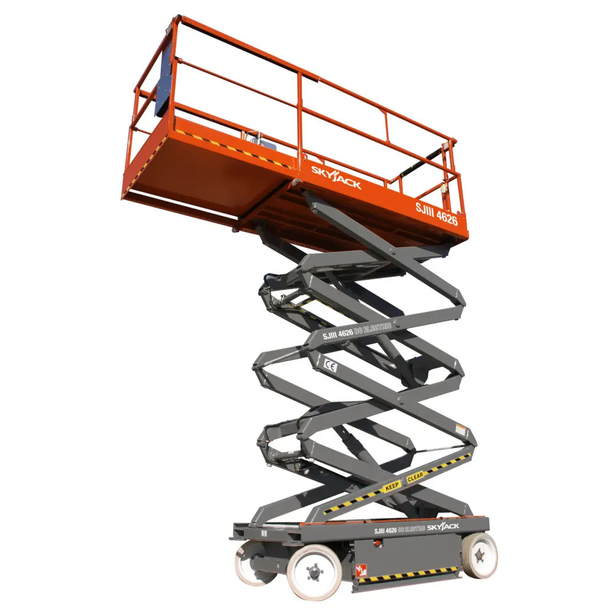

Skyjack SJIII 4626 – 9.92m Electric Scissor Lift: High Reach, High Capacity, Simple Reliability

The Skyjack SJIII 4626 stands as a testament to Skyjack's commitment to "Simply Reliable" design. This powerful electric scissor lift delivers a significant working height and robust lifting capacity, making it a preferred choice for professionals requiring efficient, elevated access in various environments. With its clean, quiet electric operation, the SJIII 4626 is perfectly suited for sensitive indoor spaces, while its durable construction and features also allow for safe outdoor use on stable ground.

Features

• 9.92m (32 ft 7 in) Max. Working Height: Provides substantial vertical reach, making it ideal for tasks such as overhead installations, ceiling work, mechanical engineering, and general maintenance in large commercial, industrial, or public buildings.
• 7.92m (26 ft 0 in) Max. Platform Height: The height of the platform floor when fully extended.
• 454 kg (1,000 lbs) Safe Working Load (SWL) / Platform Capacity: Offers an impressive platform capacity, allowing for up to three operators along with a significant amount of tools and materials (check specific rating for indoor/outdoor persons), maximizing productivity for demanding jobs.
• Electric Battery Power (24V DC):
  • Zero Emissions: Guarantees clean operation, making it perfect for indoor use, controlled environments, and sensitive areas like hospitals, schools, and retail outlets.
  • Quiet Operation: Dramatically reduces noise levels compared to combustion-powered lifts, improving communication, safety, and allowing work during off-peak hours or in noise-restricted zones.
  • Longer Duty Cycles: Designed for extended run times on a single charge, providing ample power for a full day's work.
  • On-board Automatic Charger: Simplifies recharging from standard power outlets.
• Optimal Dimensions for Versatility:
  • 1.17m (3 ft 10 in) Overall Width: Allows the SJIII 4626 to fit through many wider double doorways and industrial access points, striking a balance between compact manoeuvrability and a stable footprint for its reach.
  • 2.31m (7 ft 7 in) Overall Length: Contributes to excellent manoeuvrability in various indoor and outdoor on-slab settings.
• "Drivable at Full Height": Enhances productivity by allowing operators to reposition the lift even when the platform is fully elevated, significantly reducing setup and relocation times.
• Extendable Platform: Features a standard 1.22m (4 ft) manual roll-out extension deck, which expands the platform length (to approx. 3.35m / 11 ft). This provides additional working space and extended outreach to work over obstacles or cover a larger area without frequent repositioning.
• Skyjack's "AXLDRIVE" System (on hydraulic drive models): This model features a robust variable speed, rear two-wheel hydraulic drive system, providing excellent traction and power. Combined with its substantial gradeability (up to 30%), it ensures smooth and reliable movement over ramps and slight inclines.
• "SKYCODED™" Control System: Skyjack's proprietary analog-based control system with a colour-coded and numbered wiring system. This design simplifies troubleshooting, reduces complexity, and ensures straightforward maintenance, leading to lower operating costs and maximum uptime.
• Pothole Protection System: Enhances safety by automatically deploying steel bars when the platform is raised, helping to prevent instability if the lift encounters uneven surfaces or minor obstacles.
• Solid, Non-Marking Tyres: Provide excellent traction and stability on concrete or finished floors, while ensuring no scuffs or marks are left behind, making it suitable for sensitive indoor surfaces.
• Comprehensive Safety Features: Includes a tilt alarm with drive and lift cut-out, overload sensing system, all-motion audible alarm, lowering warning system, operator horn, lanyard attachment points, forklift pockets, and tie-down/lift lugs.
• Hinged Railing System: Allows the guardrails to be folded down, reducing the stowed height (to approx. 1.79m / 5 ft 10 in) for easier transport and access through lower overhead clearances.

Applications

The Skyjack SJIII 4626 is a highly versatile and dependable electric scissor lift, making it an excellent choice for:

• Large-Scale Building Construction & Renovation: Ideal for high-level electrical, plumbing, HVAC, ductwork, drywall, and finishing tasks on concrete slabs or level ground.
• Facilities Management & Maintenance: Comprehensive maintenance in large commercial, industrial, and institutional facilities, including high-bay lighting, sprinkler systems, and overhead infrastructure.
• Warehouse & Logistics: Efficient access to high shelving for inventory management, racking maintenance, and order picking in large distribution centres.
• Retail & Commercial Environments: Suitable for signage installation, display changes, and maintenance in shopping malls, convention centers, and exhibition halls, where quiet and emission-free operation is crucial.
• Educational & Healthcare Facilities: Perfect for use in schools, universities, and hospitals due to its low noise and lack of fumes, minimizing disruption to occupants.

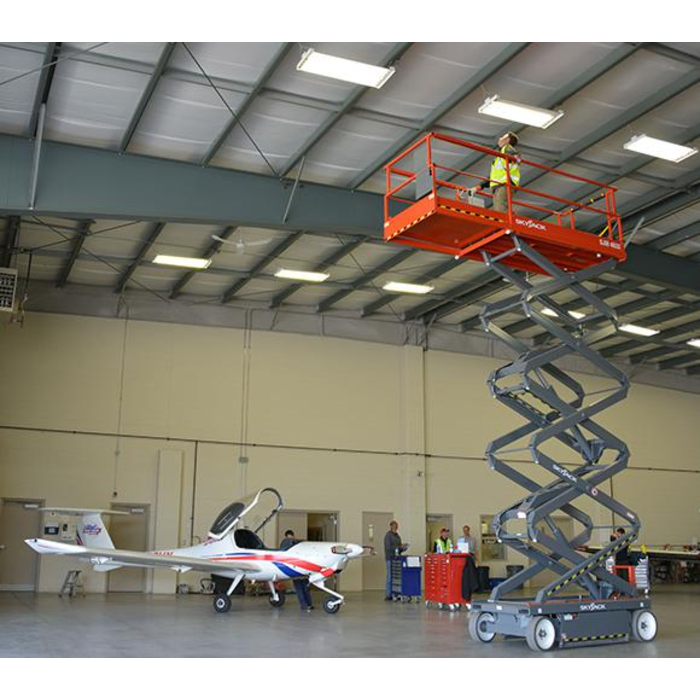

• Airport Hangars & Automotive Plants: Providing safe and stable access for maintenance, assembly, and inspection tasks.
