10M ROUGH TERRAIN SCISSOR LIFT

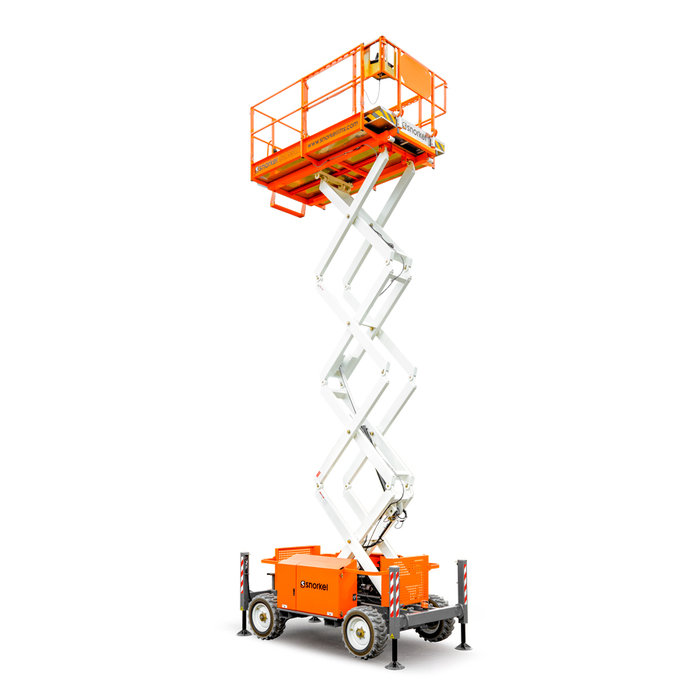

Snorkel S2755RTE: The Compact Electric Rough Terrain Scissor Lift

The Snorkel S2755RTE represents a new generation of access equipment, offering a powerful, zero-emission solution for demanding indoor and outdoor jobsites. Engineered for efficiency, versatility, and environmental responsibility, this electric rough terrain scissor lift provides excellent reach and robust performance in confined spaces, making it an ideal choice for a wide array of construction, maintenance, and industrial applications.

Features

• 10.1m (33 ft 1 in) Max. Working Height: Provides a substantial vertical reach, allowing operators to safely access elevated work areas for a variety of tasks.
• 8.1m (26 ft 7 in) Max. Platform Height: The height of the platform floor when fully extended.
• 300 kg (660 lbs) Safe Working Load (SWL) / Platform Capacity: Can safely accommodate two operators along with their tools and materials, ensuring high productivity.
• Electric Rough Terrain Performance:
  • Lithium-ion Batteries (e.g., 2 x 5.75kWh / 222Ah systems with integrated BMS): Provides clean, quiet, and emission-free operation, making it suitable for both indoor use in sensitive environments (e.g., hospitals, shopping centers, clean zones) and outdoor use in low-emission zones.
  • Powerful AC Electric Motor: Delivers high torque to the 4-wheel drive system, ensuring excellent gradeability (up to 35%) and robust performance on challenging, uneven, or soft ground, comparable to diesel equivalents.
  • Extended Duty Cycles: Lithium-ion batteries offer significantly longer run times (often a full 8-hour shift, and in some cases, up to a week between charges depending on usage) and faster charging capabilities, including the ability to "top-up" charge during breaks.
  • Reduced Noise: Operates with significantly less noise (up to 62% quieter than diesel versions), enhancing worksite safety and allowing for use in noise-restricted areas or during night shifts.
  • Lower Running Costs: Eliminates fuel costs, reduces maintenance (up to 93% less compared to engine-powered models), and removes the need for waste oil and filter disposal.
• Compact Dimensions for RT Capabilities:

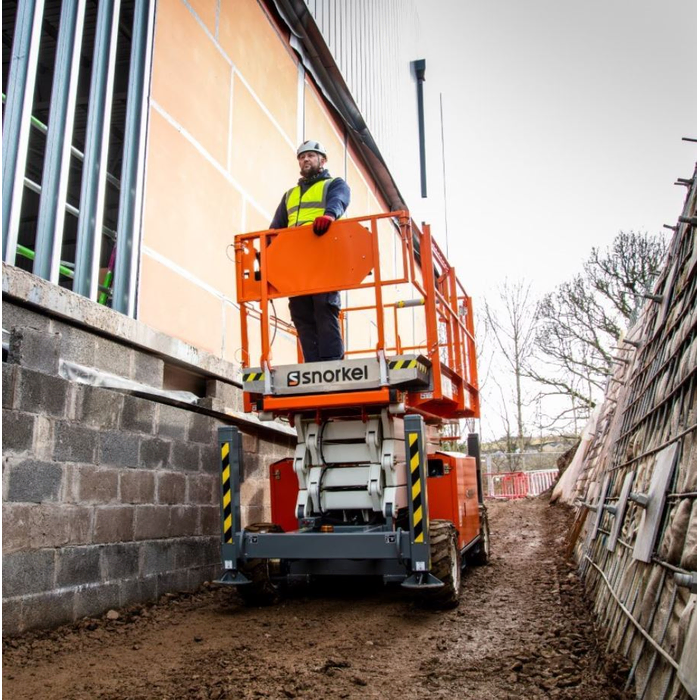

  • Narrow 1.45m (4 ft 9 in) Overall Width: This "narrow" design for a rough terrain lift allows it to fit through tight access points, between buildings, and into areas where larger RT machines cannot go, increasing its versatility.
  • Overall Length (stowed): 3.3m (10 ft 10 in).
  • Weight (approx. 2,750 kg / 6,062 lbs): Light enough to be towed by a large car or light commercial vehicle on a suitable trailer, enhancing transportability between jobsites.
• Automatic Leveling with Hydraulic Outriggers: Equipped with four hydraulic outriggers that automatically level the machine on uneven ground (up to 6° front-to-rear and 10° side-to-side), ensuring stability and safety at height. The inverted leg design protects cylinder rods from damage.
• Spacious & Extendable Platform:
  • Stowed Platform Dimensions: Approx. 1.4m x 2.73m (4 ft 7 in x 8 ft 9 in).
  • 1.2m (3 ft 11 in) Roll-out Deck Extension: Provides additional platform space and outreach, increasing the working area to approx. 1.4m x 3.93m (4 ft 7 in x 12 ft 10 in) and enhancing productivity.
• Rough Terrain Features:
  • 4-Wheel Drive: Provides superior traction on difficult terrain.
  • Oscillating Axle: Ensures all four wheels remain in contact with the ground, maintaining traction and stability on uneven surfaces.
  • Non-Marking Foam-Filled Tires: Provide excellent grip on rough terrain while also preventing marks on finished indoor surfaces, allowing for seamless transition between environments.
• Proportional Controls: Joystick controls offer smooth, precise, and multi-function operation, enhancing operator confidence and efficiency.
• Standard Safety Features: Includes power line to platform, drive motion alarm, descent alarm, flashing amber light, dual lanyard attachment points, hour meter, manual lowering valve, and fold-down guardrails.
• Robust & Durable Construction: Snorkel machines are known for their heavy-duty, all-steel construction and high-quality components, ensuring rigidity, durability, and a long working life.
• Telematics Ready (Optional): Snorkel OnSite™ telematics can be added for valuable insights into machine health, activity, and location, optimizing fleet management.

Applications

The Snorkel S2755RTE is incredibly versatile, making it a prime choice for:

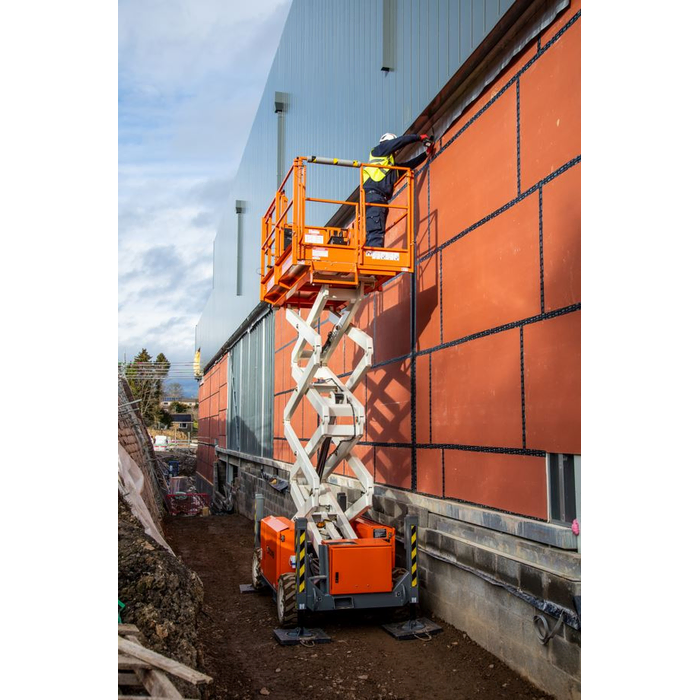

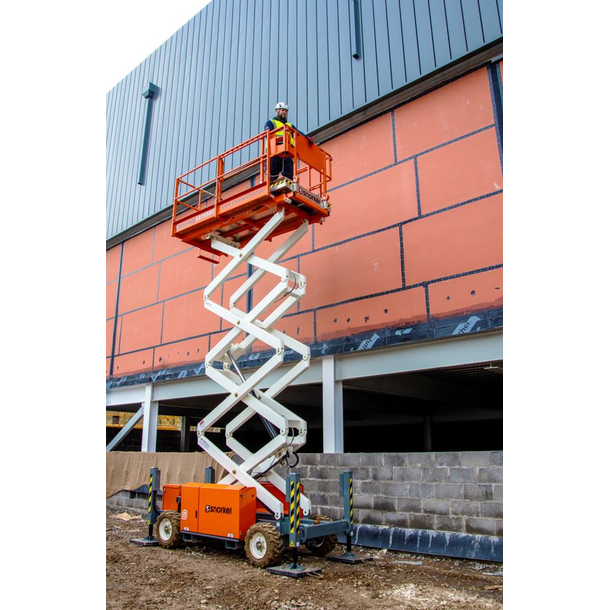

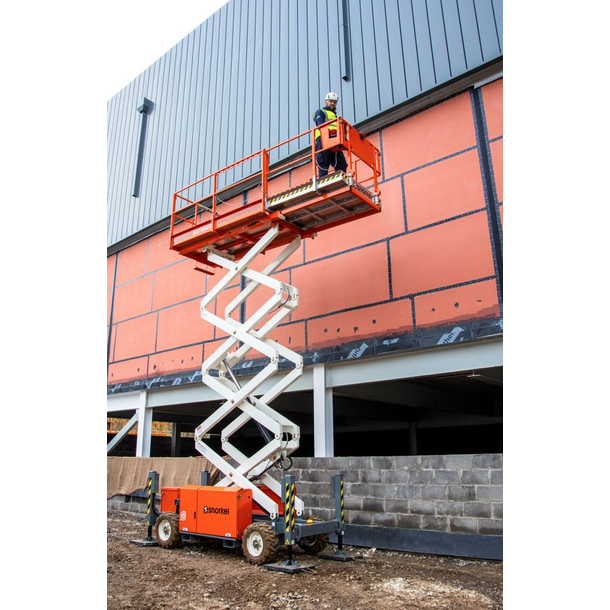

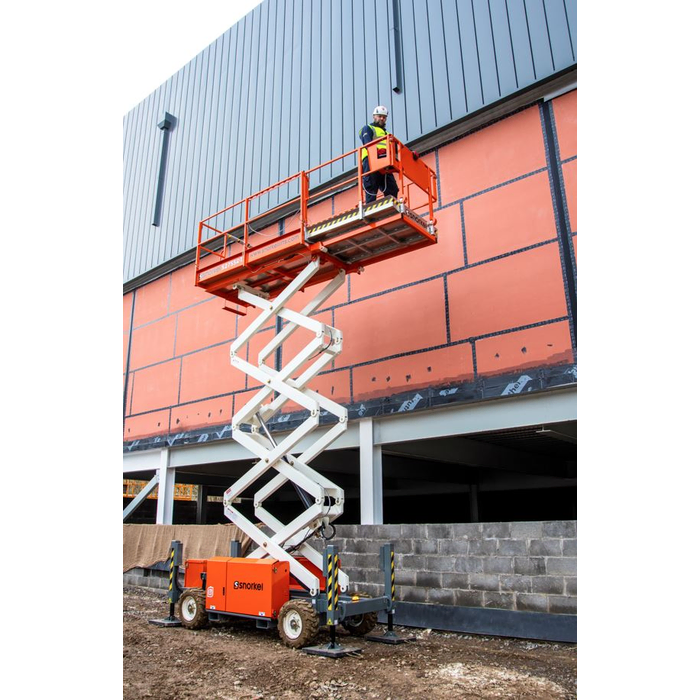

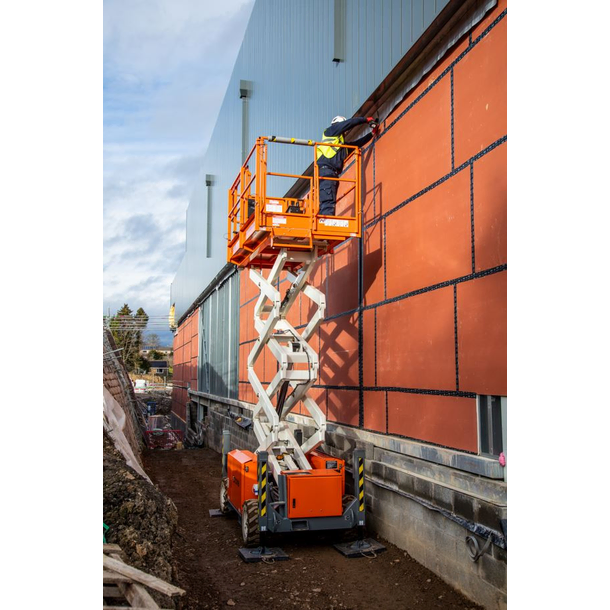

• General Construction: Ideal for outdoor building work, steel erection, cladding, insulation, roofing, and general maintenance on uneven ground where quiet operation or zero emissions are required.
• Indoor/Outdoor Dual Use: Perfect for projects that transition from exterior rough terrain to interior finished slabs (e.g., large industrial facilities, warehouses, sports arenas, airports), thanks to its electric power and non-marking tyres.
• Facilities Management: Comprehensive maintenance in large commercial, industrial, or public sector facilities with mixed terrain and environmental regulations.
• Landscaping & Arboriculture: Lighter tree trimming, garden maintenance, and access on softer ground in parks or private estates.
• Low Emission Zones / Urban Areas: Its electric power makes it suitable for use in restricted emission zones or urban environments where noise and pollution are a concern.
• Event Setup: Efficiently setting up stages, lighting, and temporary structures in outdoor venues.
