110V FLOOR TILE STRIPPER

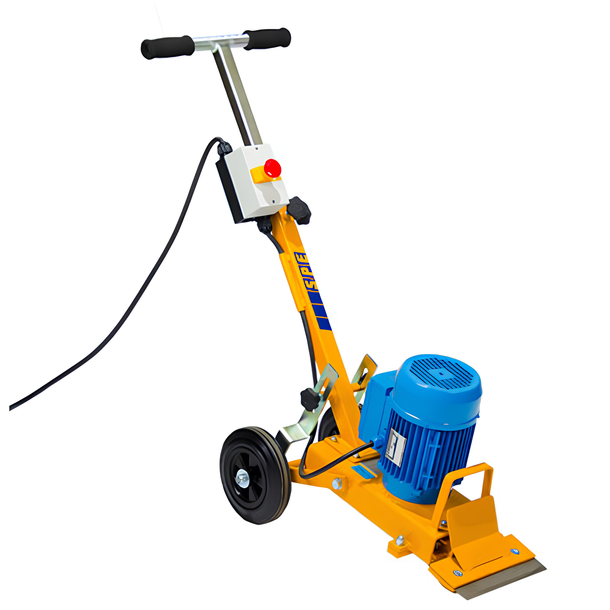

SPE MS 230 Stripping Machine by Bartell Global: Efficient Floor Covering Removal for Smaller Projects

The SPE MS 230 Stripping Machine, now part of the Bartell Global range, is a lightweight, compact, and powerful electric floor stripper designed for the efficient removal of a wide variety of floor coverings. It's a go-to machine for professional contractors and serious DIYers tackling smaller to medium-sized projects, particularly where space is limited or manual removal is too arduous.

Features

• 230mm (9") Working Width: This optimal width provides effective coverage for efficient stripping while maintaining a compact footprint, making it ideal for navigating smaller rooms, hallways, and working close to walls.
• High Performance Stripping Action: The machine utilizes a high-frequency vibrating blade mechanism to effectively lift and remove materials. This powerful action makes light work of even tough, bonded floor coverings.

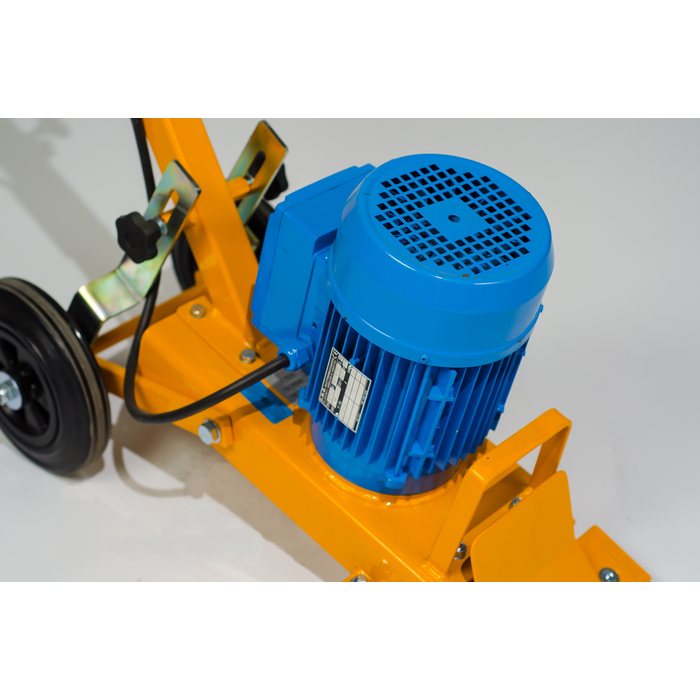

• Electric Power (110V or 230V): Available in both 110V (requiring a 3 KVA transformer for a 16 amp supply) and 230V single-phase electric motor options (typically 2 hp / 1.5 kW). This provides convenient power for indoor use, offering quiet operation and zero emissions during use.
• Compact & Portable Design: Weighing approximately 45 kg (99 lbs), the MS 230 is relatively lightweight and highly portable. Its compact dimensions make it easy to transport to and from job sites and maneuver in confined areas.
• Fully Adjustable Chassis & Blade Angle: The machine features a fully adjustable chassis, allowing the operator to fine-tune the blade angle to suit different materials and conditions. This ensures optimal stripping performance and protects the subfloor.
• Simple Clamp Arrangement for Quick Blade Change: Designed for efficiency, the blade clamp system allows for fast and easy blade changes, minimizing downtime and maximizing productivity on the job.
• Optimum Weight Distribution: The machine's design ensures optimal weight distribution, contributing to a high work rate and reducing operator fatigue during prolonged use. This helps in maintaining consistent downward pressure on the blade.

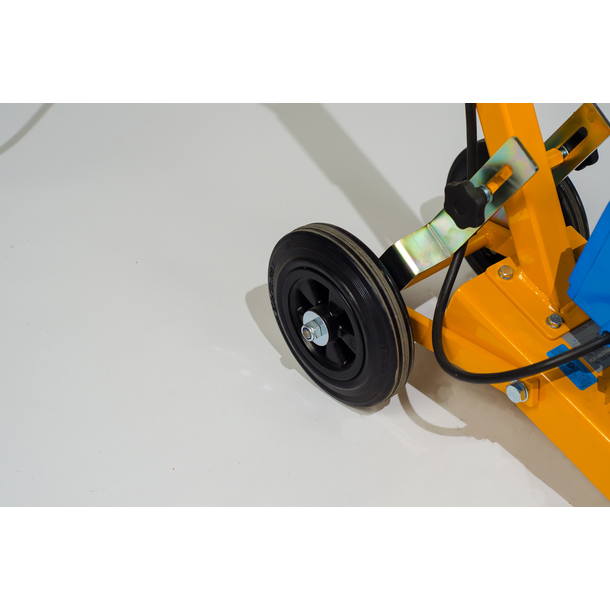

• Large Diameter Wheels: Fitted with large-diameter wheels that provide excellent mobility and stability, allowing the machine to be easily moved across various floor types and uneven surfaces

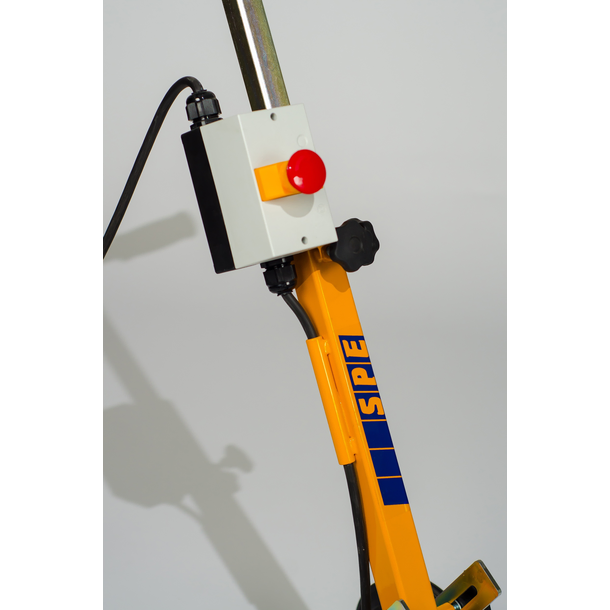

• Handle Height Adjustable: The handle height can be adjusted to suit the operator's height, enhancing control and comfort during operation.
• Durable Construction: Manufactured from high-grade materials, all components are built for strength and reliability, ensuring a long service life even under demanding use.

Applications

The SPE MS 230 Stripping Machine is highly effective for removing a wide range of floor coverings in various settings:

• Sheet Vinyl: Both bonded and unbonded sheet vinyl.
• Linoleum & Cork: Efficiently removes these materials.
• Bonded Carpet: Effective for lifting adhered carpet and carpet tiles.
• Woodblock: Can be used for the removal of woodblock flooring.
• Tiles: Ceramic, VCT (Vinyl Composition Tile), and other types of tiles (especially if de-bonded).
• De-bonded Membranes: Removal of failed or old waterproofing or levelling membranes.
• Sports Surfaces: Stripping various types of bonded sports flooring.
• Failed Latex: Clearing up old or failed latex screeds.
• Excess Material Buildup: Removing buildup of excess materials in production areas.
• Mortar/Plaster Droppings: Cleaning concrete floors from construction debris.
• Residential Renovations: Ideal for domestic projects where floor coverings need to be removed.
• Light Commercial Projects: Suitable for small shops, offices, and similar spaces.
