12" FUME EXTRACTORS

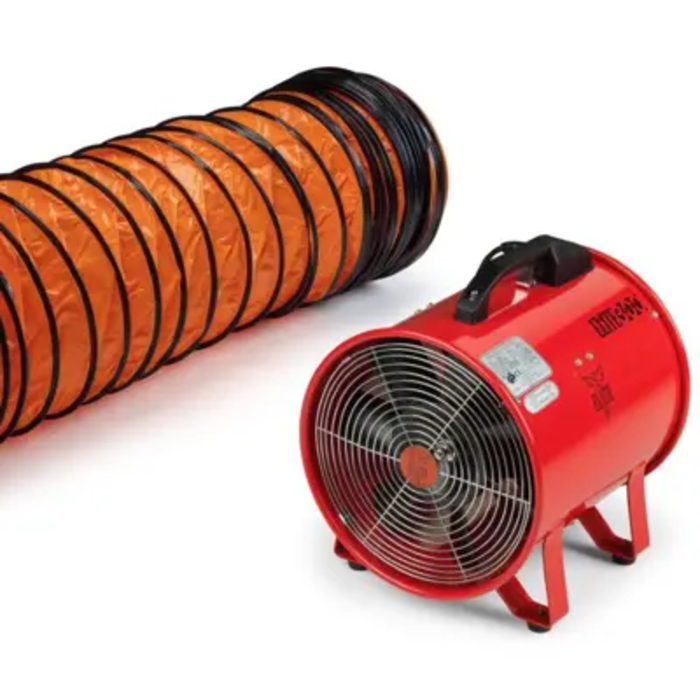

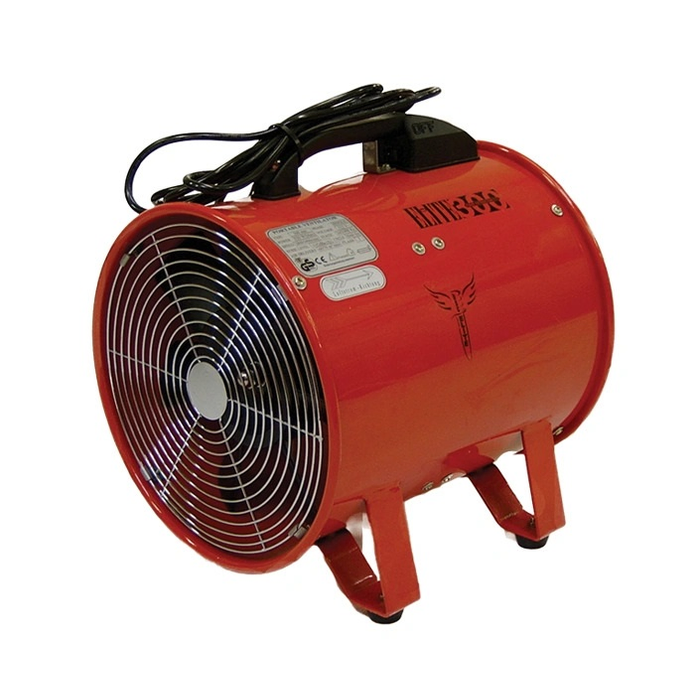

Elite 300mm 110v Fume Extractor: Powerful & Portable Air Purification

The Elite 300mm 110v Fume Extractor is a heavy-duty, compact, and highly effective ventilation solution for various industrial and commercial applications. Engineered for durability and high performance, this extractor plays a crucial role in maintaining air quality and safety on construction sites, in workshops, during confined space work, and in situations requiring rapid air circulation.

Features

• High Airflow Capacity: Equipped with a powerful motor driving a 300mm (12-inch) diameter blade, the unit delivers a substantial airflow rate of 60 cubic metres per minute (m³/min), equivalent to 3600 m³/hr or 195 CFM. This high volume of air movement ensures rapid and efficient removal of airborne contaminants.
• Robust & Durable Construction: The main body is constructed from 1.5mm high-grade steel, providing exceptional strength and longevity to withstand the rigours of demanding industrial environments. The motor housing is made from an aluminium alloy, which aids in excellent heat dissipation and contributes to a reduced overall weight.
• Powerful 520 Watt Motor: A strong 520-watt motor ensures consistent and reliable performance, driving the fan at a high rotation speed (typically 2800-2860 revolutions per minute), generating significant air pressure (Static Pressure: 294-343 Pa) for effective extraction.
• Portable and Compact Design: Despite its robust build, the extractor is designed to be lightweight (approximately 10-14 kg) and compact. It includes a sturdy integrated handle, making it easy to carry, transport between different work sites, and position in various locations, including confined spaces.
• 110V Power Supply: Operates on a 110V power supply, making it ideal for use on construction sites where 110V is the standard for safety. It typically comes with a 16 Amp plug and a 3-meter power cable.

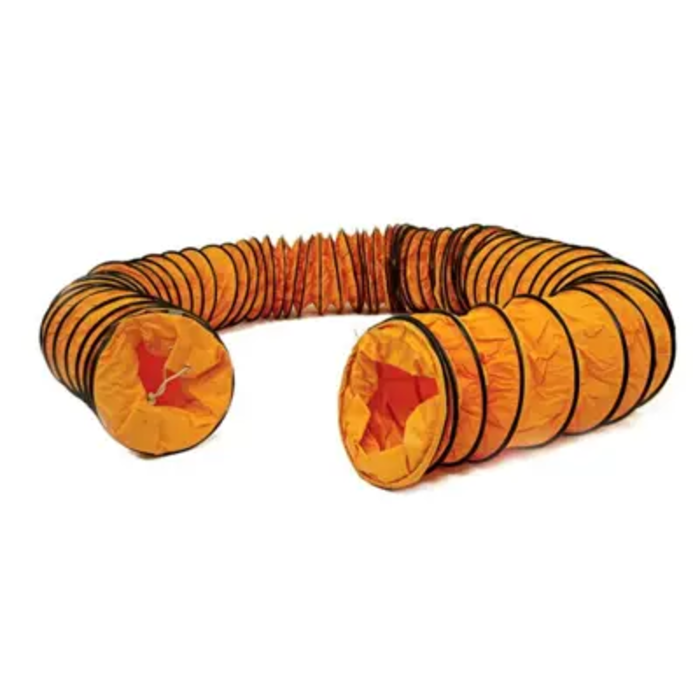

• Flexible Ducting Compatibility: Designed to be used with flexible, fire-retardant ducting (available as optional accessories in 5-meter and 10-meter lengths). This allows for targeted extraction, directing fumes away from the source or delivering fresh air into specific areas, even through doors, windows, and corners.
• Versatile Applications: Beyond fume extraction, this unit can also serve as a powerful air mover to:
  • Speed up drying: Accelerate the drying of plaster, paint, concrete, and other materials during construction or renovation.
  • Support water damage restoration: Assist in drying out damp areas after leaks or floods by improving air circulation.
  • Improve general ventilation: Provide much-needed air circulation in crowded or stale environments impacted by dust, heat, or odours.
• Low Noise Level (Relative to performance): While powerful, it operates at a noise level of approximately 85 dB(A), which is typical for industrial fans of this capacity.

Applications

The Elite 300mm 110v Fume Extractor is widely used in:

• Construction Sites: Extracting dust, fumes from welding, grinding, cutting, and odours from paints and chemicals.
• Confined Spaces: Providing fresh air or extracting contaminated air from tunnels, manholes, tanks, ships' cabins, and underground warehouses.
• Workshops & Factories: Improving air quality in welding bays, chemical labs, spray booths, and general manufacturing areas.
• Renovation & Remediation: Ventilating areas during plastering, painting, flooring, and water damage drying.
• Emergency Ventilation: Providing rapid air exchange in areas with sudden fume build-up (not for explosive environments).
• Heating & Cooling Support: Working in conjunction with heaters or coolers to distribute air more effectively.
