12M ELECTRIC SCISSOR LIFT

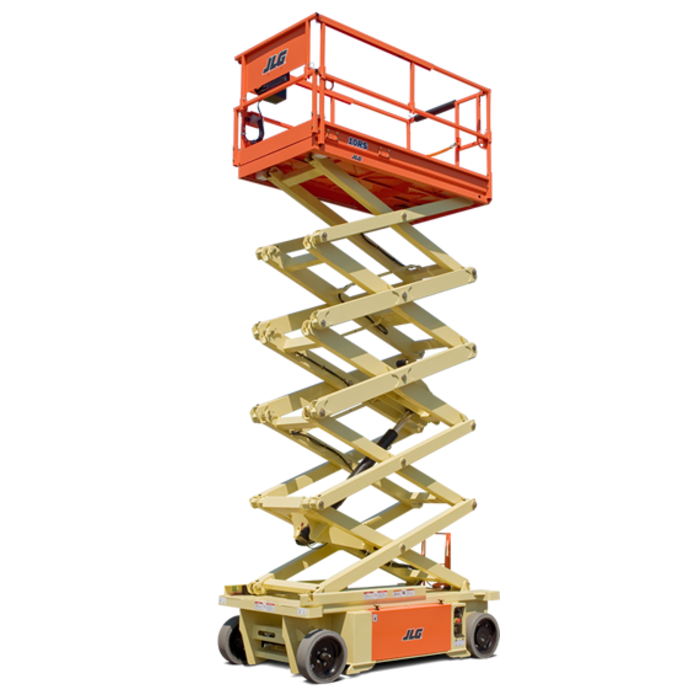

JLG 10RS – 11.75m Electric Scissor Lift: Reach New Heights, Quietly and Efficiently

The JLG 10RS electric scissor lift is a powerful and versatile machine designed to elevate productivity in a wide array of work environments. Offering a significant working height of 11.75 meters, this self-propelled lift delivers clean, quiet, and emission-free operation, making it perfectly suited for demanding indoor applications and sensitive outdoor sites with firm, level ground. Its intuitive controls and robust design ensure safe and efficient work at height.

Features

• 11.75m (38 ft 7 in) Max. Working Height: Provides substantial vertical reach, making it ideal for tasks such as installing overhead utilities, ceiling work, painting, and maintenance in large industrial facilities, commercial buildings, and convention centers.
• 9.75m (32 ft 0 in) Max. Platform Height: The height of the platform floor when fully extended.
• 320 kg (705 lbs) Safe Working Load (SWL) / Platform Capacity: Boasts a solid platform capacity, capable of accommodating two operators along with their tools and materials, ensuring efficient completion of tasks.
• Electric Battery Power (24V DC):
  • Zero Emissions: Operates with no exhaust fumes, making it ideal for indoor use, controlled environments, and sensitive areas like hospitals, schools, and food processing plants where air quality is critical.
  • Quiet Operation: Significantly reduces noise levels compared to combustion-powered lifts, enhancing communication on site, reducing operator fatigue, and allowing work in noise-restricted areas or during night shifts.
  • Efficient Power System: Typically powered by four 6V 220 Ah (or similar) deep-cycle batteries, providing reliable and sustained power for extended duty cycles.
  • On-board Automatic Battery Charger: Simplifies recharging from standard power outlets, ensuring the machine is ready for operation.
• Optimal Dimensions for Versatility:
  • 1.22m (4 ft 0 in) Overall Width: Allows the 10RS to navigate through wider double doorways and many industrial access points, providing a good balance between stability and accessibility.
  • 2.41m (7 ft 11 in) Overall Length: Contributes to excellent maneuverability in various indoor and outdoor "on-slab" settings.
• "Drivable at Full Height": Enhances productivity by allowing operators to reposition the lift even when the platform is fully elevated (up to 9.75m platform height), minimizing downtime and improving workflow.

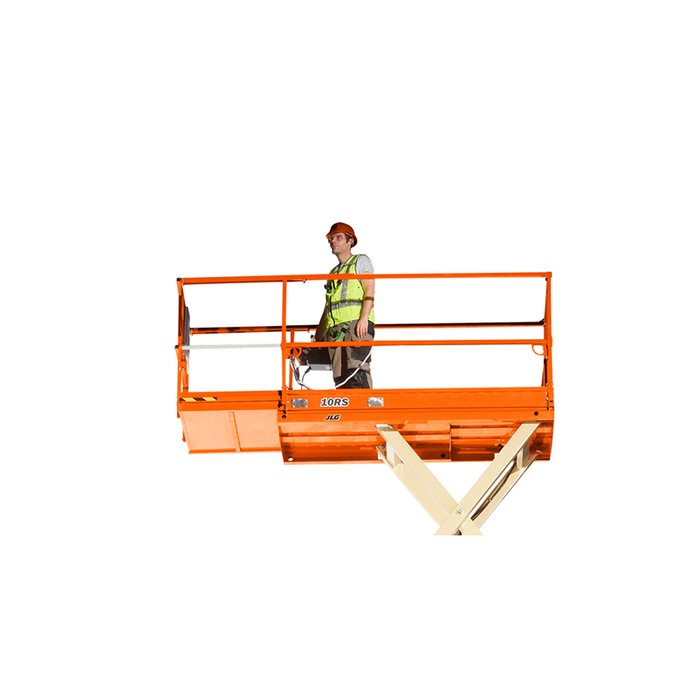

• Extendable Platform: Features a standard 0.88m (2 ft 11 in) roll-out deck extension, which significantly increases the platform length (to approx. 3.29m / 10 ft 9 in). This provides additional working space and outreach to work over obstacles or cover a larger area without frequent repositioning.
• Direct Electric Drive: This model typically features a direct electric drive system, offering excellent power efficiency, smooth acceleration, precise control, and reduced maintenance compared to traditional hydraulic drive systems. It provides robust traction and gradeability (up to 25%).
• Passive Pothole Protection: A standard safety feature that automatically deploys to protect the machine if it encounters unexpected dips or uneven surfaces, enhancing stability when elevated.
• Solid, Non-Marking Tyres: Ensures excellent traction and stability on concrete or finished floors while preventing unsightly marks or damage, making it suitable for polished or sensitive surfaces.
• Comprehensive Safety Features: Includes a load sensing system (for platform overload), 3-degree tilt indicator light with cut-out, ground control selector switch with key lock, proportional drive and lift controls, joystick enable for lift and drive, battery condition indicator, hour meter, horn, and manual emergency lowering valve. Fold-down handrails facilitate transport.
• Easy Accessibility for Maintenance: Features lift-off steel hoods for easy access to battery and electrical compartments, simplifying maintenance and service.
• Programmable "Personality" Settings: Allows customization of lift and drive performance characteristics to suit operator preferences or specific job requirements.

Applications

The JLG 10RS is a highly versatile electric scissor lift, making it an excellent choice for a variety of tasks in Dartford, UK, and beyond:

• General Building Maintenance: For tasks like lighting, HVAC, plumbing, and general repairs in offices, schools, hospitals, retail centres, and other commercial buildings.
• Indoor Construction & Fit-out: Ideal for electrical installations, ductwork, drywalling, painting, and finishing work in new builds or refurbishments, particularly where access is through wider doorways.
• Warehousing & Logistics: Efficient access to high shelving for inventory management, racking maintenance, and order picking in distribution centres.
• Retail & Commercial Environments: Suitable for signage installation, display changes, and general maintenance in shopping malls, exhibition halls, and convention centers, where quiet and emission-free operation is crucial.
• Facilities Management: For maintaining large public buildings and institutions where minimal disruption and environmental impact are desired.
• Film & Entertainment Industry: Providing stable, quiet platforms for lighting, rigging, and camera work in studios or on set.
