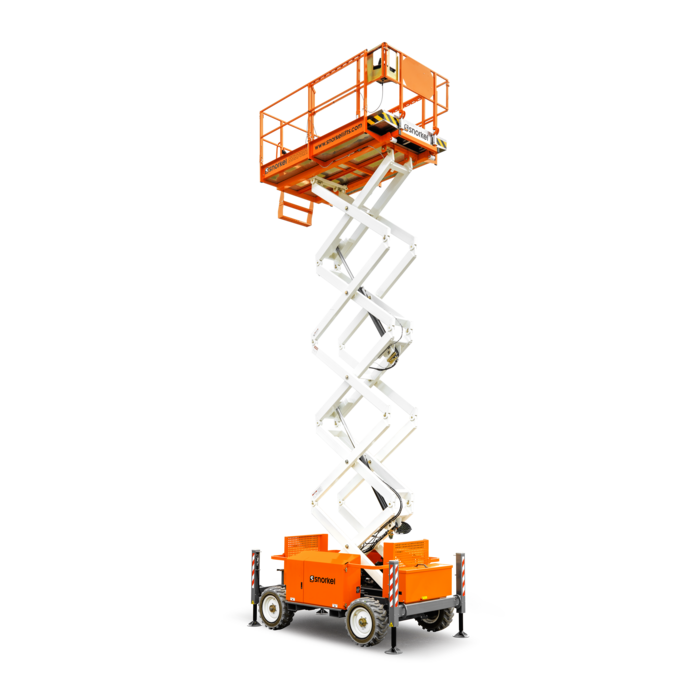

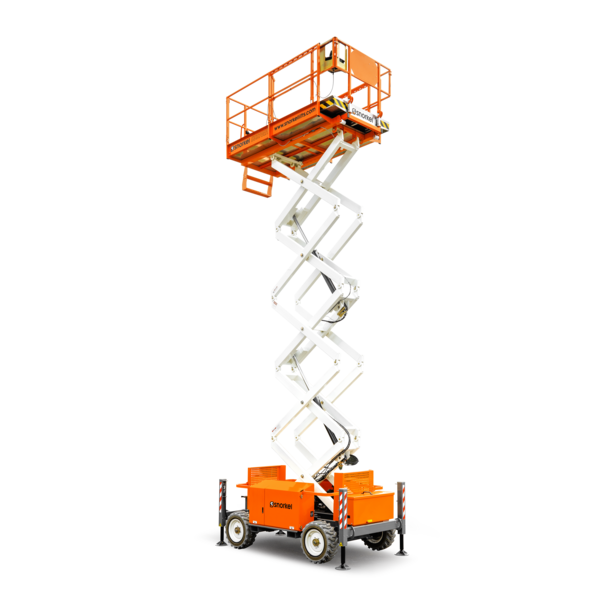

12M ROUGH TERRAIN SCISSOR LIFT

Snorkel S3370RTE – 12.0m Electric Rough Terrain Scissor Lift: Silent Power for Demanding Sites

The Snorkel S3370RTE is a game-changer in the powered access industry, providing a powerful, emission-free, and remarkably quiet solution for challenging work at height. Designed for maximum versatility, this electric rough terrain scissor lift excels in both rugged outdoor conditions and sensitive indoor environments, delivering robust performance without the noise, fumes, or maintenance demands of traditional diesel models.

Features

• 12.0m (39 ft 4 in) Max. Working Height: Offers significant vertical reach, enabling safe and efficient work on higher structures, installations, and building facades.
• 10.0m (32 ft 10 in) Max. Platform Height: The height of the platform floor when fully extended.
• 454 kg (1,000 lbs) Safe Working Load (SWL) / Platform Capacity: Boasts an impressive platform capacity, comfortably accommodating up to two or three operators (depending on local regulations) along with a substantial amount of tools and materials, greatly enhancing productivity.
• Advanced Electric Rough Terrain Performance:
  • Lithium-ion Batteries (typically 11.5kWh system, often two 5.75kWh/222Ah units with integrated BMS): Provides clean, quiet, and zero-emission operation, making it ideal for indoor use, green building projects, low-emission zones, and sensitive environments.
  • Powerful AC Electric Drive Motor: Delivers high torque and robust performance to the 4-wheel drive system, enabling exceptional gradeability (up to 35%) and superior traction on uneven, soft, or challenging terrain.
  • Extended Duty Cycles: Lithium-ion batteries offer significantly longer run times (often a full 8-hour shift or more on a single charge) and faster charging capabilities. They can also be "top-up" charged during breaks, maximizing uptime.
  • Reduced Noise Levels: Operates significantly quieter than diesel equivalents (enhancing communication and safety on site, and allowing work in noise-restricted areas or at night).
  • Lower Running Costs: Eliminates fuel expenses, significantly reduces maintenance requirements (due to fewer moving parts and no engine fluids), and removes the need for costly emissions compliance.
• Compact Dimensions for RT Capabilities:
  • Overall Width of 1.80m (5 ft 11 in): While a rough terrain model, its width allows access through many industrial doorways, gates, and congested work areas where larger RT machines might struggle.
  • Overall Length (stowed): 3.40m (11 ft 2 in).
  • Weight: Approx. 3,620 kg (7,980 lbs).
• Automatic Leveling with Hydraulic Outriggers: Equipped with four independent hydraulic outriggers that automatically level the machine on slopes (up to 6° front-to-rear and 10° side-to-side), ensuring maximum stability and safety when working at height, even on uneven ground. The inverted leg design protects cylinder rods from damage.
• Spacious & Extendable Platform:
  • Large Stowed Platform Dimensions: 1.60m x 2.80m (5 ft 3 in x 9 ft 2 in).
  • 1.2m (3 ft 11 in) Roll-out Deck Extension: Provides additional platform space and outreach, extending the working area to approx. 1.60m x 4.00m (5 ft 3 in x 13 ft 1 in), significantly enhancing productivity and access over obstacles.
• True Rough Terrain Features:
  • 4-Wheel Drive: Ensures superior traction on challenging surfaces.
  • Oscillating Axle: Keeps all four wheels in constant contact with the ground, maintaining traction and stability over undulating terrain.
  • 330mm (13 in) Ground Clearance: Allows the machine to navigate obstacles and uneven ground with ease.
  • Non-Marking Foam-Filled Tyres: Provide excellent grip on rough terrain while preventing marks on finished indoor surfaces, offering true dual-purpose functionality.
• Proportional Controls: Features an intuitive proportional joystick for smooth, precise, and multi-functional operation of all movements (drive, steer, lift), enhancing operator control and confidence.
• Comprehensive Safety Features: Includes a platform overload system, drive motion alarm, descent alarm, dual flashing amber lights, hour meter & on-board diagnostics display, manual lowering valve, and dual lanyard attachment points. Fold-down guardrails facilitate transport.
• Robust & Durable Construction: Snorkel machines are renowned for their heavy-duty, all-steel construction and high-quality components, ensuring rigidity, durability, and a long operational life, even in demanding rental environments.
• Snorkel OnSite™ Telematics (Optional): Provides valuable data insights into machine health, activity, and location, helping to optimize fleet management, reduce downtime, and improve overall profitability.

Applications

The Snorkel S3370RTE's combination of significant working height, robust rough terrain capabilities, and electric power makes it incredibly versatile for:

• General Construction Sites: Ideal for outdoor building work, steel erection, cladding, insulation, roofing, and general maintenance on uneven ground where quiet operation or zero emissions are mandated.
• Indoor/Outdoor Dual Use: Perfect for large industrial facilities, warehouses, sports arenas, airports, and other sites that require transitions between exterior rough terrain and interior finished slabs, thanks to its electric power and non-marking tyres.
• Facilities Management: Comprehensive maintenance in large commercial, industrial, or public sector facilities with mixed terrain and strict environmental regulations.
• Low Emission Zones / Urban Areas: Its electric power makes it highly suitable for use in restricted emission zones, dense urban environments, or night-time work where noise and air quality are critical concerns.
• Electrical & Mechanical Installations: Providing stable access for large-scale electrical, HVAC, and plumbing installations in various environments.
• Event Setup & Venues: Efficiently setting up stages, lighting rigs, temporary structures, and maintenance in large outdoor venues or exhibition halls.
