12M TELEHANDLER

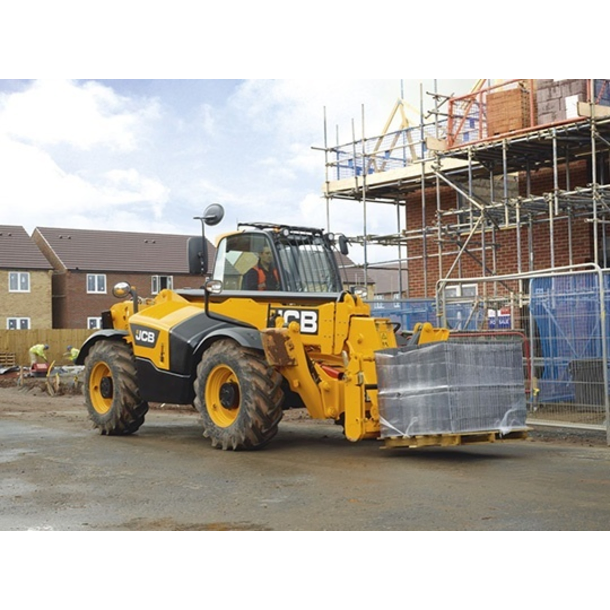

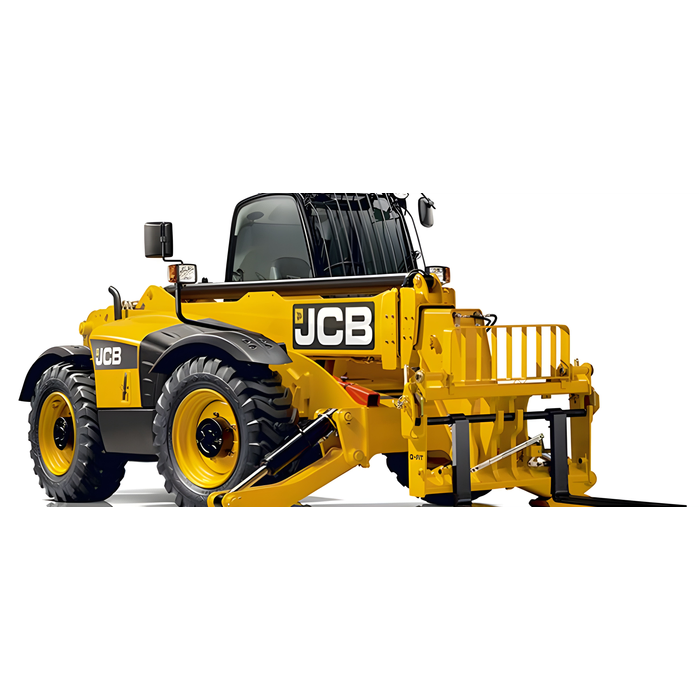

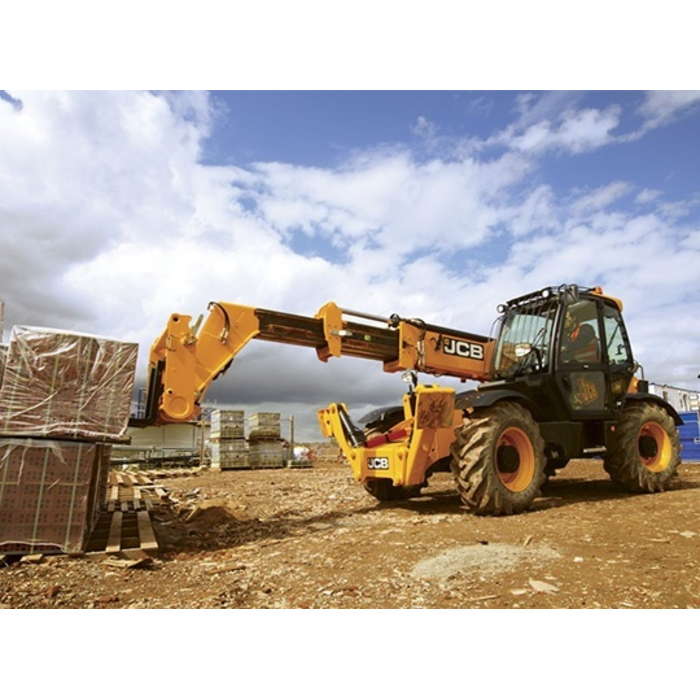

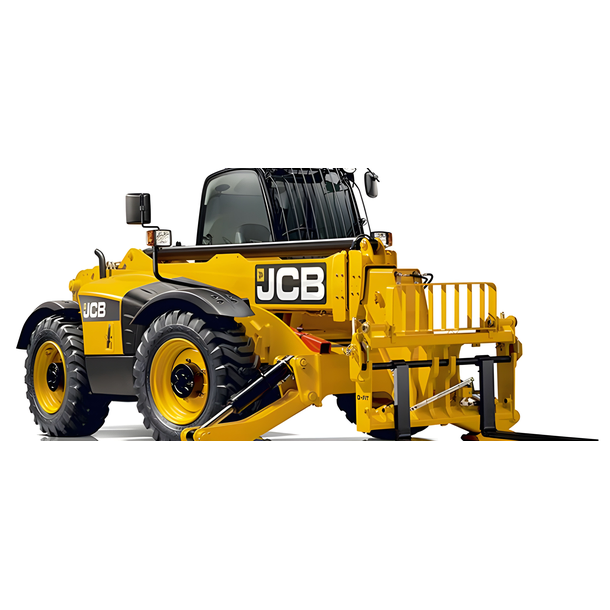

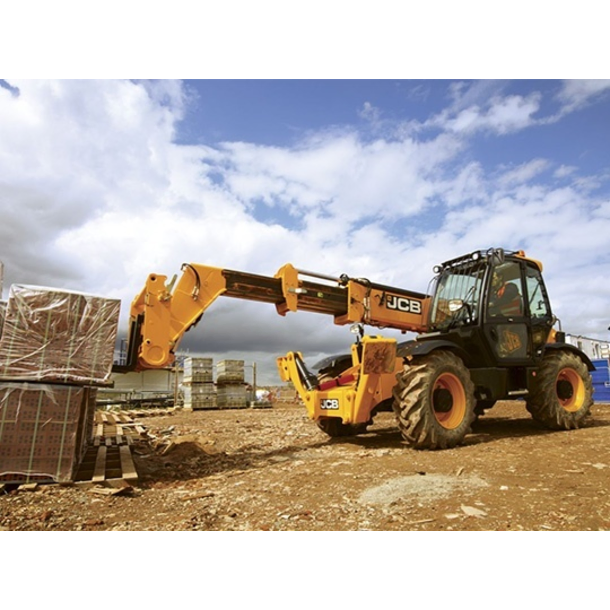

JCB 535-125 12m Telehandler: High Reach, High Capacity, High Productivity

The JCB 535-125 Loadall is a powerful and versatile telescopic handler engineered to meet the rigorous demands of modern construction sites, large-scale agricultural operations, and industrial material handling. With a maximum lift height of 12.5 meters and a 3.5-tonne lift capacity, it offers an impressive combination of reach and power, making it a highly efficient solution for diverse applications.

Features

• 3.5 Tonne Max. Lift Capacity: Capable of lifting substantial loads up to 3,500 kg (3.5 tonnes), allowing it to handle heavy pallets of bricks, large timber frames, steel components, and other bulk materials with ease.
• 12.5 Metre Max. Lift Height: The multi-stage telescopic boom provides an impressive maximum lift height of 12.5 meters (41 feet). This makes it ideal for working on multi-story buildings, placing materials on rooftops, assisting with scaffolding erection, and reaching into deep excavations.
• Significant Forward Reach: Offers a maximum forward reach of over 8 meters (26 ft), providing excellent flexibility for placing materials precisely, even over obstacles or across wide trenches, often supported by extendable stabilizers for enhanced stability at reach.
• Powerful & Efficient JCB DieselMAX Engine: Equipped with JCB's own highly efficient DieselMAX engine, typically ranging from 55 kW (75 hp) to 81 kW (109 hp), with options up to 93 kW (125 hp). These engines are designed to meet EU Stage V emissions regulations, offering excellent fuel economy without the need for complex DPF regeneration or AdBlue (DEF) systems on some lower horsepower models, simplifying maintenance and reducing running costs.
• Productive Drivetrain:
  • Powershift Transmission: Often features a Powershift transmission, allowing for smooth, on-the-move gear changes for faster cycle times and efficient travel speeds (up to 29 km/h or 18 mph).
  • 4-Wheel Drive: Provides excellent traction and control on challenging terrains, including muddy, uneven, or soft ground conditions, ensuring maximum site accessibility.
  • 3 Steering Modes: Enhances manoeuvrability with 2-wheel steer for road travel, 4-wheel steer for tight turning circles, and crab steer for parallel movement, allowing precise positioning in confined areas.
• Unrivalled Safety & Visibility (Hi-Viz Design): JCB places paramount importance on safety:
  • Low Boom Profile & Low Boom Pivot: The 535-125 Hi-Viz variant features a uniquely designed low boom profile and pivot point, providing unrivalled rearward visibility over the right-hand side, a common blind spot in telehandlers.
  • ROPS/FOPS Certified Cab: The operator's cab is fully certified to Roll-Over Protective Structure (ROPS) and Falling Object Protective Structure (FOPS) standards.
  • Load Moment Indicator (LMI) System: An automatic, eye-level audio-visual warning system continuously monitors the machine's forward stability, providing proportional control of boom movements to prevent overloading and ensure safe operation.
  • Hose Burst Check Valves (HBCVs): Fitted to rams as standard, these prevent boom collapse in the event of hose failure.
  • Optional Safety Systems: Can be equipped with reversing cameras, pulse radar, and JCB IntelliSense (on compatible models) for enhanced pedestrian and obstacle detection.
• Robust Strength & Durability:
  • One-Piece Fully Welded Chassis: Provides maximum structural integrity and minimizes weight.
  • Inverted U-Shaped Boom Pressing: With fully welded closing plates and reduced stress points for exceptional strength and durability. Hoses are routed inside the boom for protection.
  • Rigorous testing ensures components can withstand prolonged heavy use.
• Superior Operator Comfort:
  • Spacious & Ergonomic Cab: A large, comfortable side-entry cab offers excellent space, direct glazing for superb visibility, and intuitive, ergonomic controls, reducing operator fatigue over long shifts.
  • Adjustable Components: Features like an adjustable steering column and deluxe suspension seat enhance operator comfort.
• JCB LiveLink Telematics: Often included as standard, this advanced telematics system provides real-time data on machine location, operating hours, fuel consumption, service alerts, and performance reports, helping to optimize fleet management and uptime.

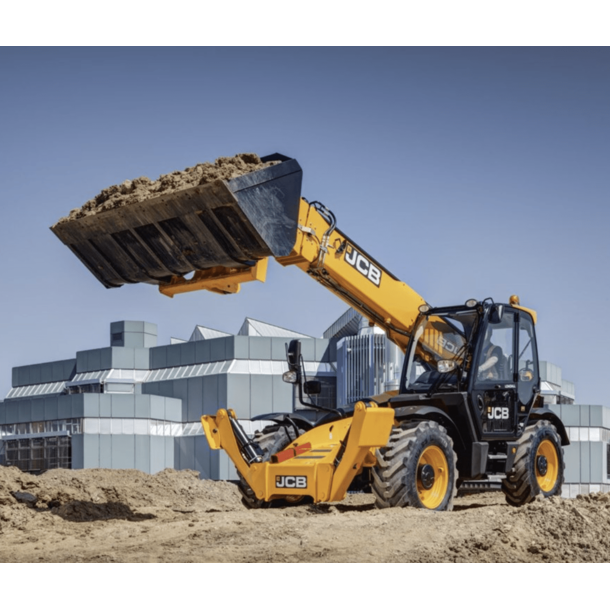

• Versatile Attachment Capability: Compatible with JCB's Q-Fit carriage, allowing for quick and easy attachment changes. This includes a wide range of pallet forks, rehandling buckets, grapples, jibs, work platforms, and more, significantly expanding its functionality.

Applications

The JCB 535-125 12m Telehandler is a versatile and essential machine for a wide range of applications:

• Residential & Commercial Construction: Lifting and placing materials on multi-story building sites, including roof trusses, steelwork, bricks, and pre-fabricated panels.
• Site Preparation: Moving bulk materials, assisting with ground levelling, and loading high-sided transport vehicles.
• Demolition: Handling and moving debris from demolition sites.
• Scaffolding & Access: Lifting scaffolding components and potentially carrying work platforms for elevated access (with appropriate attachments and safety measures).
• Civil Engineering: Supporting bridge construction, large-scale drainage projects, and infrastructure development.
• Material Handling: General lifting, loading, and offloading tasks in large yards, factories, and warehouses.
