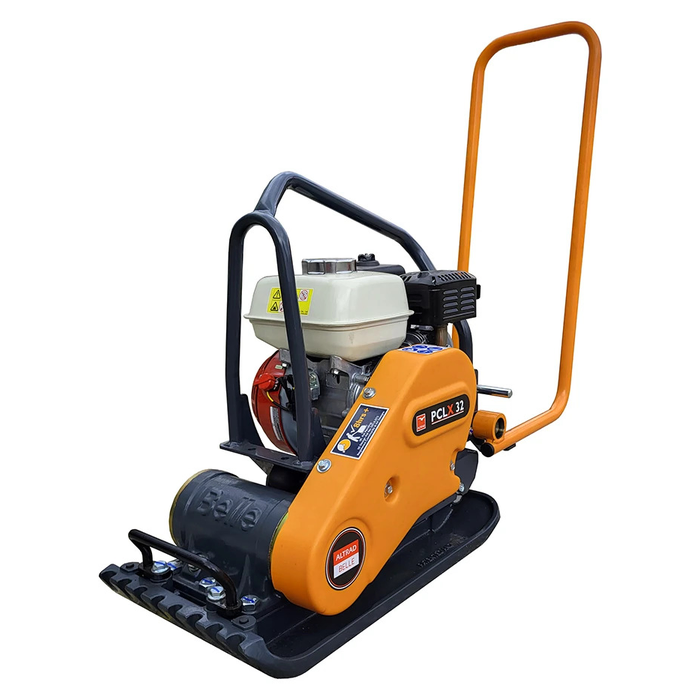

Belle PCLX 32 Plate Compactor: High-Performance Compaction with Low Hand-Arm Vibration

The Belle PCLX 32 is a professional-grade, high-performance forward plate compactor, designed by Altrad Belle for efficient compaction of granular materials, asphalt, and block paving. It's a widely popular choice among contractors and in the rental industry, largely due to its robust build, ease of use, and crucially, its low Hand-Arm Vibration (HAVs) design, which allows for longer safe usage times.

Features

• Optimal Compaction Force (13 kN): Equipped with a powerful 13 kN (kiloNewton) centrifugal force vibration unit. This provides excellent compaction force, making it highly effective for a variety of tasks, from compacting sub-bases for patios and driveways to preparing ground for trenches and foundations.
• Low Hand-Arm Vibration (HAVs) Design: A standout feature of the PCLX series. Engineered to significantly reduce vibration transmitted to the operator's hands, typically achieving levels around 2.49 m/s². This allows for longer safe operating periods, enhancing operator comfort and compliance with health and safety regulations.
• Choice of Reliable Petrol Engines: Typically powered by either a genuine Honda GX120 (approx. 3.2 Hp / 2.4 kW) or a Loncin H135 (approx. 3.5 Hp / 2.6 kW) petrol engine. Both are known for their reliability, durability, and easy starting, ensuring consistent performance on site.
• Robust & Durable Construction:
  • Tubular Frame: The strong, tubular frame design effectively protects the engine and other vulnerable components from damage on demanding construction sites.
  • Contoured Baseplate: The 320mm (13-inch) wide baseplate is specially contoured to optimize speed and manoeuvrability. It's designed not to "dig in" when dragged backwards or turned, making the machine easy to operate and control, even for less experienced users.
  • High-Quality Bearings: The oil-filled vibrator unit is fitted with top-quality bearings for long-term durability and reliable performance.
• Excellent Manoeuvrability & Travel Speed: With a maximum travel speed of approximately 20 m/min, the PCLX 32 offers efficient coverage of compaction areas. Its lightweight design and well-balanced nature contribute to easy manoeuvrability around obstacles and in confined spaces.
• Easy Transport & Storage: Despite its robust build, the PCLX 32 is comparatively lightweight (around 64-66 kg, depending on engine/accessories). The main handle can be folded, allowing the unit to fit into a standard car boot for convenient transportation. It also features multiple manual handling lift points and a conveniently located central lifting point.
• Optional Accessories:
  • Removable 12-Litre Water Tank: A quick-release water tank with an integrated spray bar is available for asphalt work, helping to prevent material from sticking to the baseplate and achieving a smoother finish.
  • Wheel Kit: An optional detachable wheel kit can be fitted to aid on-site transportation, making it even easier to move the compactor around.
  • Paving Pad: An optional paving pad (usually rubber) is available for compacting block paving, protecting the surface from damage.
• User-Friendly Operation: Engineered to be robust, durable, and easy to operate and control, making it suitable for both rental and heavy contractor usage.

Applications

The Belle PCLX 32 Plate Compactor is an indispensable tool for compacting various materials in a wide range of construction and landscaping projects:

• Foundations & Sub-bases: Compacting aggregates for house extensions, sheds, garages, and small building foundations.
• Pathways & Patios: Preparing the ground for footpaths, garden patios, and decorative paving.
• Driveways: Compacting hardcore and sub-base materials for domestic and light commercial driveways.
• Trenches: Consolidating backfill in trenches for utilities, drainage, and irrigation systems.
• Asphalt & Tarmac: Compacting asphalt surfaces for repairs or new laying (especially with the optional water kit).
• Block Paving: Compacting newly laid block paving to seat the blocks firmly (with the optional paving pad).
• General Site Preparation: Any application requiring effective ground compaction on smaller to medium-sized sites.
