14M ELECTRIC SCISSOR LIFT

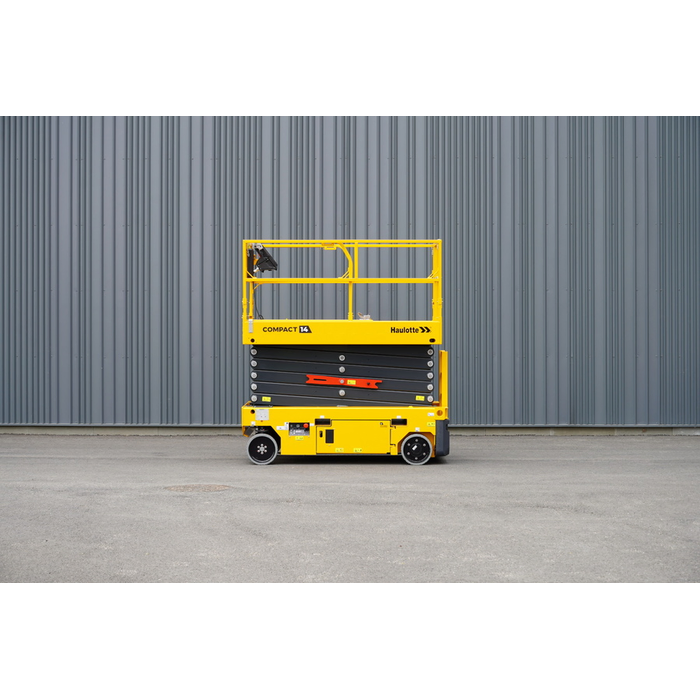

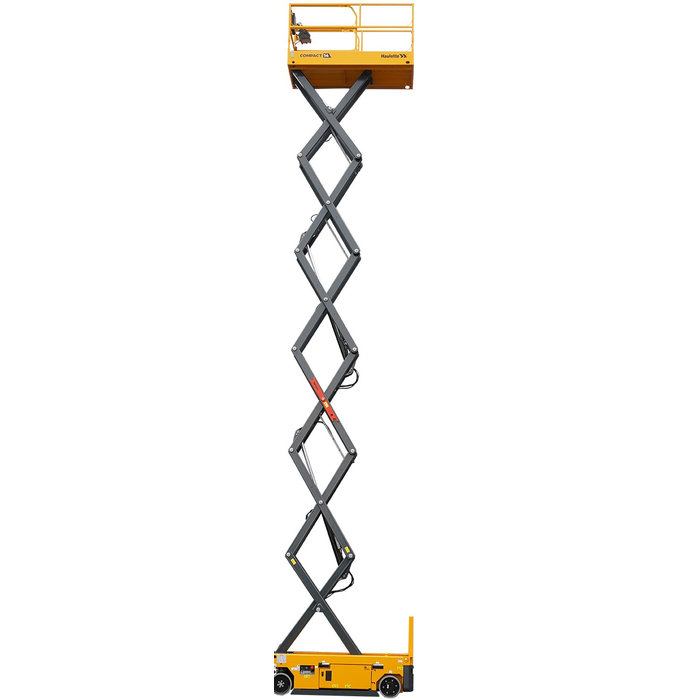

Haulotte Compact 14 – 13.8m Electric Scissor Lift: Power, Precision, and Compact Agility

The Haulotte Compact 14 electric scissor lift is engineered for superior productivity and adaptability on diverse worksites. With an impressive working height of 13.8 meters, this machine provides elevated access with the benefits of electric power: zero emissions and quiet operation. Its compact design ensures it can fit through standard double doorways and operate efficiently in congested indoor spaces, making it an indispensable tool for maintenance, construction, and finishing tasks.

Features

• 13.8m (45 ft 3 in) Max. Working Height: Offers substantial vertical reach, making it ideal for high-level tasks such as lighting, HVAC, electrical installations, ceiling work, and general maintenance in large commercial, industrial, and public buildings.
• 11.8m (38 ft 9 in) Max. Platform Height: The height of the platform floor when fully extended.
• 350 kg (771 lbs) Safe Working Load (SWL) / Platform Capacity: Provides a generous platform capacity, typically allowing for two to three operators (check specific indoor/outdoor ratings) along with a significant amount of tools and materials, enhancing on-site efficiency.
• Electric Power (24V DC) with AC Motors:
  • Zero Emissions: Operates without exhaust fumes, making it perfectly suited for sensitive indoor environments, cleanrooms, retail spaces, hospitals, and educational institutions where air quality is paramount.
  • Quiet Operation: Dramatically reduces noise levels, minimizing disruption in occupied areas and allowing for work during off-peak hours or in noise-restricted zones.
  • Haulotte Activ'Energy Management: Features a smart CAN charger (typically 27A multivoltage) and optimizes battery performance and lifespan, reducing overall charging time and increasing battery longevity. Options for automatic or manual battery water filling systems are available.
  • AC Motors: Provide smooth, proportional movements for precise driving and lifting, improving control and operator comfort.
• Optimal Compact Dimensions:
  • 1.20m (3 ft 11 in) Overall Width: This compact width is a significant advantage, allowing the Compact 14 to easily navigate through standard double doorways, wider aisles, and tight spaces commonly found in industrial facilities, warehouses, and commercial buildings.
  • 2.49m (8 ft 2 in) Overall Length: Further enhances its manoeuvrability in confined areas.
• "Drivable at Full Height": Increases productivity by allowing the operator to reposition the machine even when the platform is fully elevated, reducing downtime and improving workflow.
• Spacious & Extendable Platform:
  • Large Stowed Platform Dimensions: Approx. 2.31m x 1.14m (7 ft 7 in x 3 ft 9 in), providing ample working space.
  • 0.92m (3 ft 0 in) Front Roll-out Deck Extension: Significantly increases the platform length to approx. 3.23m (10 ft 7 in), allowing operators to reach over obstacles or cover a larger working area without frequently repositioning.
• Smart Rugged Design: Features an impact-proof counterweight with integrated ladder protection, AC motors, and reinforced guardrails with additional vertical stiles for maximum durability and resilience on demanding worksites.
• Excellent Manoeuvrability: With its compact design and powerful drive, it offers an outside turning radius of approximately 1.83m (6 ft 0 in), ensuring precise positioning.
• Pothole Protection System: Automatic mobile pothole guards provide enhanced safety and stability when the platform is raised, particularly when traversing uneven surfaces.
• Solid, Non-Marking Tyres (15 x 5): Ensures excellent traction and stability on concrete or finished floors while preventing unsightly marks or damage, making it suitable for polished or sensitive surfaces.

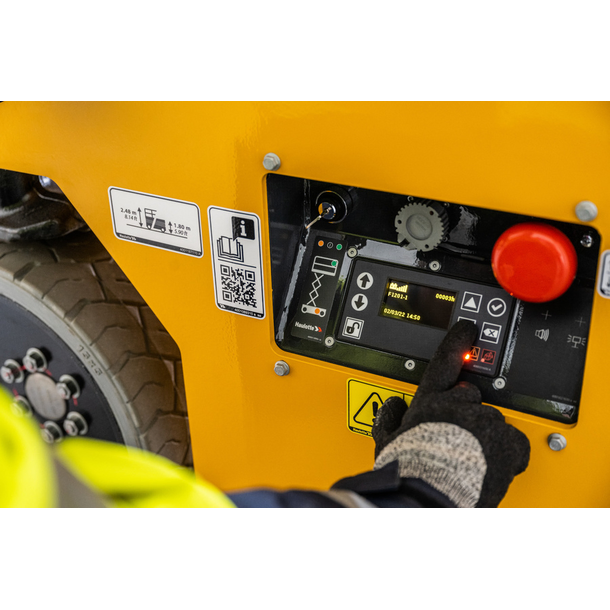

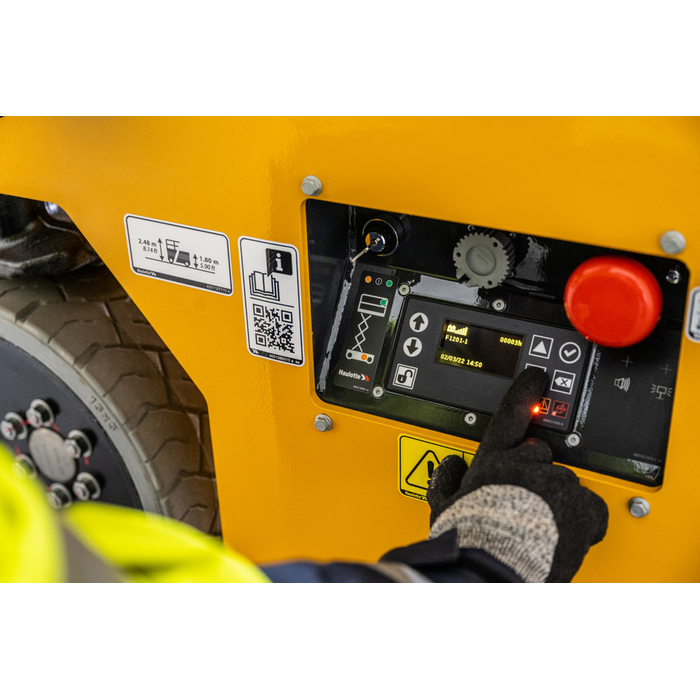

• Comprehensive Safety Features: Includes Haulotte Activ'Screen for on-board diagnostics and service alerts, battery level indicator, tilt controller, load management system, manual emergency descent, motion alarm, electric brake release, and a removable control box in the platform for operator flexibility.
• Foldable Guardrails: Allows the stowed height to be reduced to approximately 2.02m (6 ft 8 in), facilitating transport and passage through lower overhead clearances.

Applications

The Haulotte Compact 14 is a highly sought-after electric scissor lift, particularly popular in Dartford, UK, for its versatility and efficiency in:

• Large-Scale Indoor Construction & Fit-Out: Ideal for high-level electrical, plumbing, HVAC, ductwork, drywall, and finishing tasks in new commercial buildings, data centers, and industrial facilities.
• Facilities Management & Maintenance: Comprehensive maintenance, cleaning, and repair work in large commercial, industrial, and institutional buildings, including high-bay lighting, sprinkler systems, and overhead infrastructure.
• Warehouse & Logistics: Efficient access to high racking for inventory management, stock picking, and maintenance in distribution centers and high-bay warehouses with wider aisles.
• Retail & Commercial Environments: Suitable for signage installation, display changes, and maintenance in shopping malls, convention centers, and exhibition halls, where quiet and emission-free operation is crucial.
• Educational & Healthcare Facilities: Perfect for use in schools, universities, and hospitals due to its low noise and lack of fumes, minimizing disruption to occupants.
• Film & Entertainment Industry: Providing stable, quiet platforms for lighting, rigging, and camera work in studios or on set.
