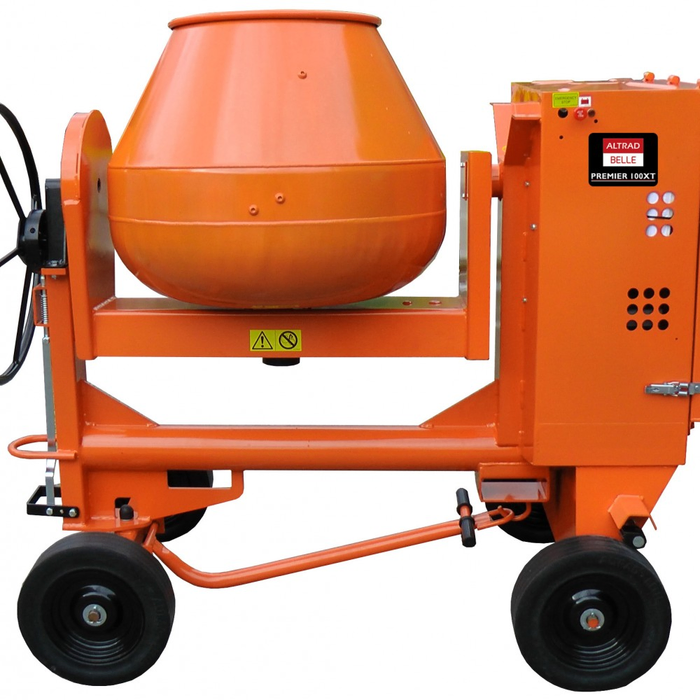

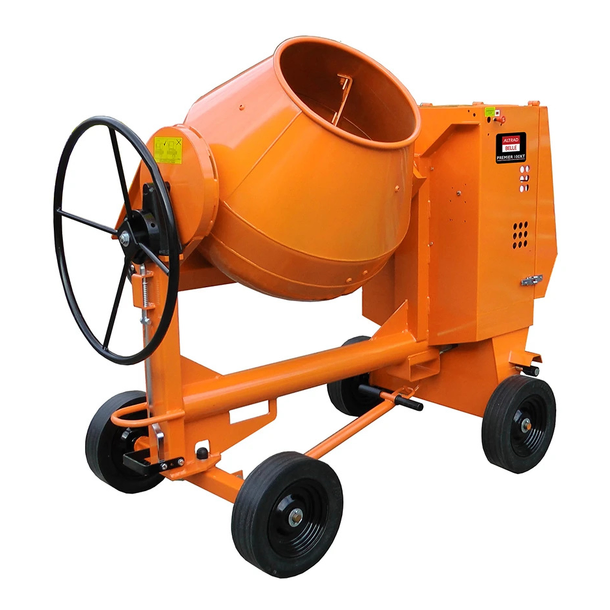

Belle Premier 100XT Concrete Mixer: High Performance & Extreme Durability for Demanding Sites

The Belle Premier 100XT is a professional-grade, heavy-duty mobile concrete and mortar mixer engineered to withstand the harshest construction environments. Designed for continuous use and large batch mixing, it combines a robust chassis with a high-performance drum and efficient mixing paddles, making it the preferred choice for contractors, builders, and hire companies requiring reliability and productivity on site.

Features

• Large Drum & Mixing Capacity:
  • Drum Volume: A generous 250 litres allows for substantial batch sizes.
  • Mixing Output: Delivers an impressive 110 litres of mixed material per batch, significantly increasing productivity and reducing mixing cycles for larger pours.
• Robust & Extra Heavy-Duty Chassis: Constructed with an extra-strong and durable tubular chassis. This design ensures exceptional rigidity and resistance to distortion, providing long-lasting performance even in the toughest site conditions. Its "easy-to-clean" tubular design further aids maintenance.
• Reinforced Mixing Drum: The drum is extra rigid and reinforced to prevent distortion under heavy loads, ensuring consistent mixing performance and extended operational life.

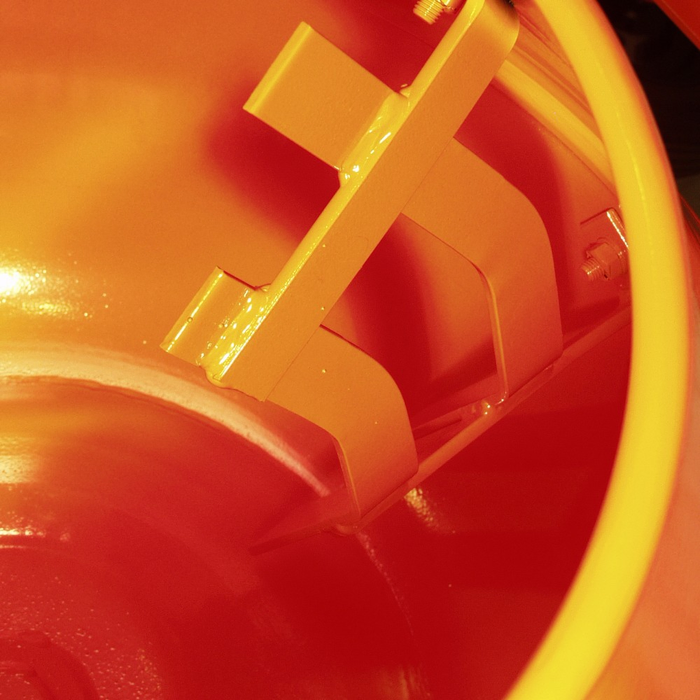

• Enhanced Mixing Performance: Features a unique "Quick Mix" gated paddle design. These high-performance paddles are designed to efficiently and thoroughly mix concrete and mortar. They are also replaceable bolt-in paddles, allowing for easy maintenance and minimal downtime.
• Electric (110V): Powered by a robust 2.0 Hp (1.5 kW) electric motor. Ideal for sites with access to mains electricity, offering quieter operation and zero emissions during use. Electric models typically have a noise level of around 87 dB(A).

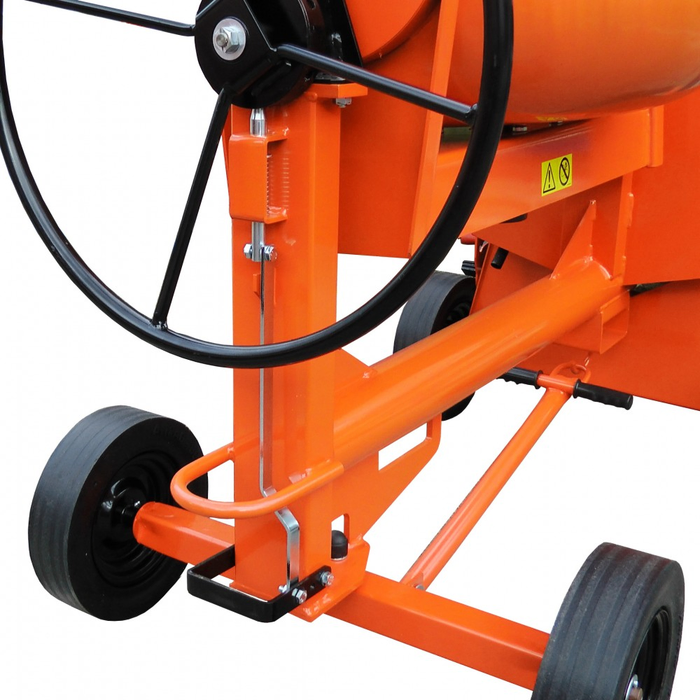

• Foot-Operated Tip-Lock & Large Tip Wheel: Designed for enhanced safety and precise control when discharging large mixes. The large tipping wheel combined with a foot-operated lock allows the operator to control the drum's position effortlessly and securely.

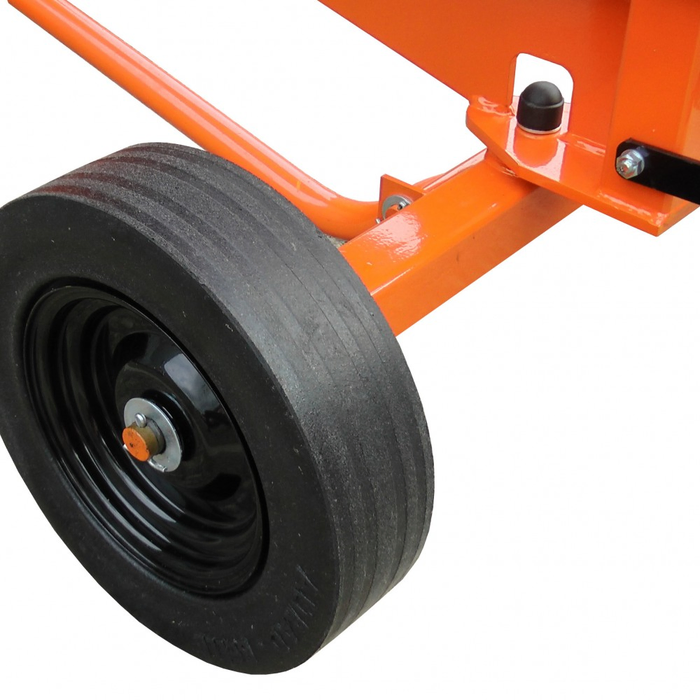

• Heavy-Duty, Wide Profile Wheels: Fitted with robust wheels engineered for reliable operation in challenging environments. The new wider profile provides additional stability, aiding movement and performance across uneven or soft ground.
• Sealed, High-Specification Gearbox: Features a heavy-duty, sealed gearbox that minimises maintenance requirements, ensuring long-term reliability and performance even in dusty or wet conditions.
• Compact Wheelbase: The 100XT model has an extra-short wheelbase, specifically designed to be compatible with compact vehicle tail lifts. This greatly assists in transporting the mixer to and from site, enhancing its portability.
• Integrated Forklift Pockets (on some variants/standard): Facilitates safe and easy loading/unloading and movement of the mixer using forklift machinery.
• Weight Approx. 303.5 - 305.5 kg
• Dimensions (L x W x H) 1765 x 900 x 1475 mm

Applications

The Belle Premier 100XT is the ideal solution for:

• General Construction Sites: Mixing concrete for foundations, slabs, footings, and structural elements.
• Landscaping Projects: Preparing mortar for brickwork, paving, and rendering.
• Renovation & Extension Projects: Handling larger batches of materials for residential and commercial extensions.
• Utility Works: For consistent mixing of backfill or bedding materials.
