8M ELECTRIC SCISSOR LIFT

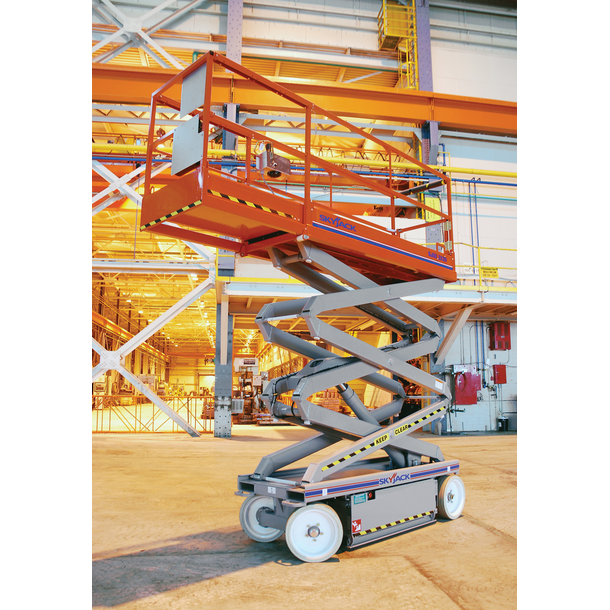

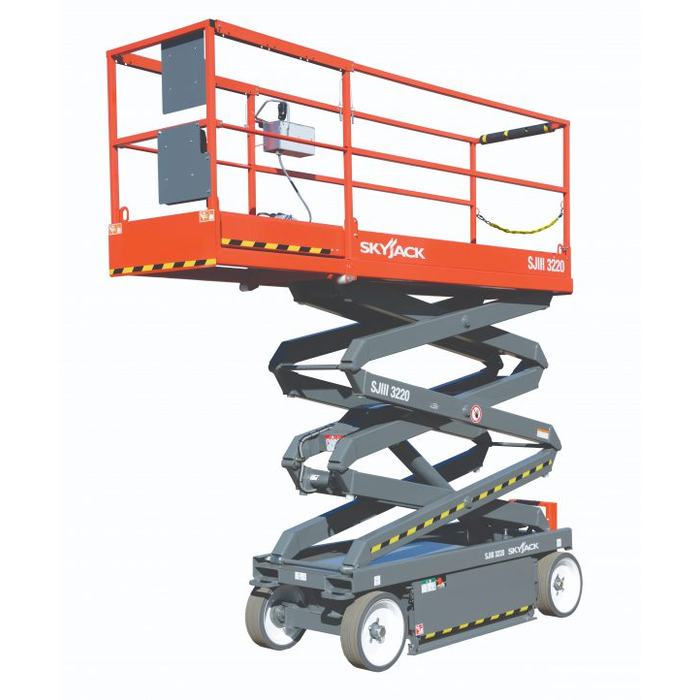

Skyjack SJ3220 – 8.1m Electric Scissor Lift: Compact Power for Diverse Applications

The Skyjack SJ3220 is a leading electric slab scissor lift, offering an optimal blend of compact dimensions, impressive working height, and robust capacity. Designed for efficiency and reliability, this machine provides quiet, emission-free operation, making it an ideal choice for a wide range of indoor and sensitive outdoor "on-slab" tasks where space is at a premium and environmental factors are important.

Features

• 8.1m (26 ft 8 in) Max. Working Height: Provides a practical vertical reach for numerous applications, including general building maintenance, electrical installations, ceiling work, and fit-out tasks.
• 6.1m (20 ft 1 in) Max. Platform Height: The height of the platform floor when fully extended.
• 408 kg (900 lbs) Safe Working Load (SWL) / Platform Capacity: Boasts an industry-leading capacity for its class, allowing for two operators plus a substantial amount of tools and materials, significantly boosting on-site productivity.
• Electric Battery Power (24V DC):
  • Zero Emissions: Perfect for indoor use, cleanrooms, retail environments, hospitals, schools, and facilities where air quality is critical.
  • Quiet Operation: Minimizes disruption in occupied buildings or during night shifts, enhancing worksite safety and comfort.
  • Efficient Power Management: Designed for longer run times per charge and fewer lifetime charge cycles, reducing battery wear and overall operating costs.
  • On-board Automatic Charger: For convenient and efficient recharging.
• Ultra-Compact Dimensions:
  • Narrow 0.81m (2 ft 8 in) Overall Width: Allows it to easily fit through standard single doorways (typically 32 inches wide), into passenger lifts, and navigate narrow aisles and congested areas, maximizing accessibility.
  • Overall Length of 2.32m (7 ft 7 in): Contributes to its excellent manoeuvrability in confined spaces.
• "Drivable at Full Height": Enhances productivity by allowing the operator to reposition the machine even when the platform is fully elevated, reducing downtime.
• Extendable Platform: Features a standard 0.91m (3 ft) manual roll-out extension deck, which significantly increases the platform length (to approx. 3.02m / 9 ft 11 in). This provides additional working space and outreach, allowing operators to reach over obstacles or cover a larger area without frequently repositioning the entire lift.
• Skyjack's "AXLDRIVE" System (on hydraulic drive models): While the SJ3220 generally refers to Skyjack's DC electric drive (with rear two-wheel hydraulic drive motors), Skyjack's general AXLDRIVE philosophy emphasizes axle-based drive systems. For electric models, this translates to robust drive performance with excellent gradeability (up to 25-30%) and consistent power, traction, and torque, ensuring smooth movement even on slight inclines.
• "SKYCODED™" Control System: A proven and reliable analog-based control system with a colour-coded and numbered wiring system. This makes troubleshooting and repairs straightforward, leading to easier maintenance and lower long-term costs.
• Pothole Protection System: Provides added safety by automatically deploying steel bars when the platform is raised, preventing the machine from moving over larger bumps or holes that could destabilize it.
• Solid, Non-Marking Tyres: Ensures excellent traction and stability on concrete or finished floors while preventing unsightly marks or damage, making it suitable for polished or sensitive surfaces.
• Comprehensive Safety Features: Includes a tilt alarm with drive & lift cut-out, overload sensing system, all-motion audible alarm, lowering warning system, operator horn, lanyard attachment points, forklift pockets, and tie-down/lift lugs.
• "Simply Reliable" Design: Skyjack's philosophy focuses on simple, robust, and reliable design, reducing complexity and increasing uptime.
• Fold-down Hinged Railing System: Allows the machine to pass through lower overhead clearances (e.g., under 1.75m when folded), aiding in transport and access to various areas.

Applications

The Skyjack SJ3220 is a versatile and reliable electric scissor lift, making it an excellent choice for:

• General Building Maintenance: Lighting, HVAC, plumbing, and general repair work in commercial, industrial, and institutional buildings.
• Electrical & Mechanical Installations: Wiring, conduit, ductwork, and sprinkler system installations in large facilities.
• Interior Fit-Out & Finishing: Drywalling, painting, ceiling tile installation, and general finishing work in new construction or renovation projects.
• Retail & Commercial Centres: Stocking, merchandising, signage installation, and maintenance in shops, supermarkets, and shopping malls where quiet and clean operation is essential.
• Warehousing & Logistics: High-level shelving access, inventory management, and maintenance in narrow aisles.
• Schools & Hospitals: Its quiet, emission-free operation is ideal for sensitive environments with occupants.
• Data Centers & Cleanrooms: Suitable for controlled environments where air quality and floor protection are critical.
