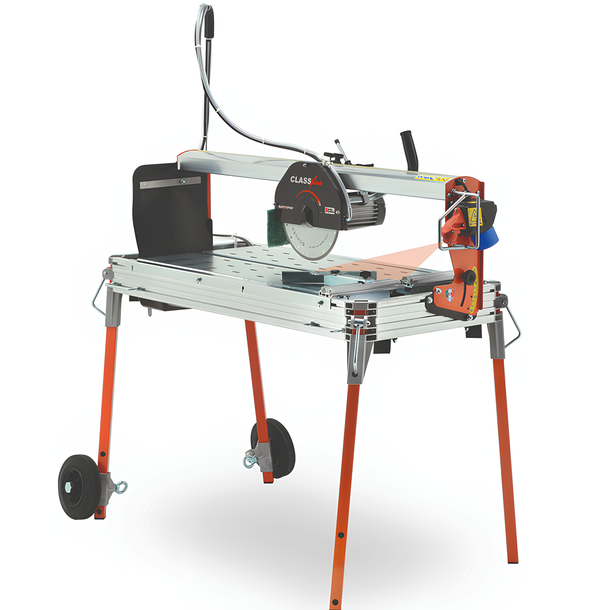

CLASS PLUS 1050S 10" TILE SAW

BATTIPAV CLASS PLUS 1050S 10" Tile Saw (110V): Precision Cutting for Large Format Tiles

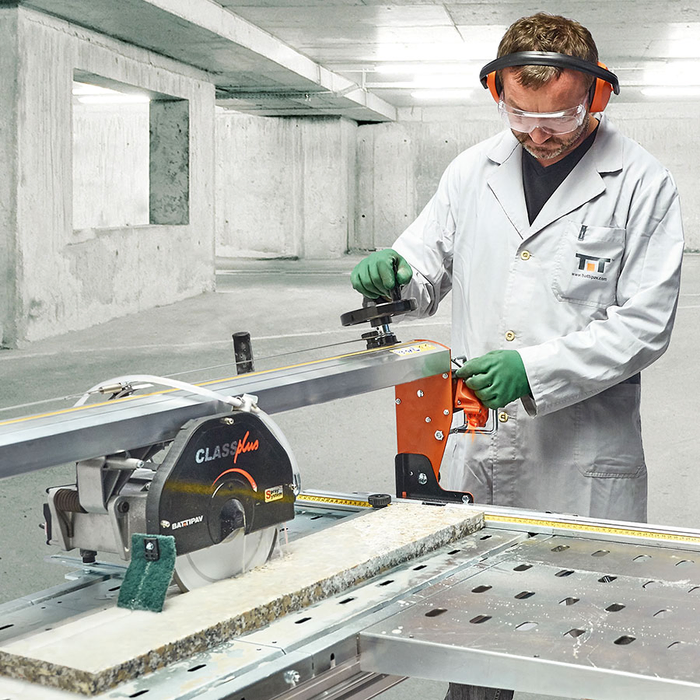

The BATTIPAV CLASS PLUS 1050S is a robust and highly precise electric radial tile cutter, specifically engineered to meet the rigorous demands of professional tiling. It's the ideal machine for achieving immaculate straight and 45° (jolly) angle cuts on modern large-format porcelain stoneware, as well as single/double-fired ceramics, marble, and other natural stone products. Its 110V single-phase motor makes it perfectly suited for safe and compliant use on UK construction sites.

Combining Italian design with advanced technical innovation, the CLASS PLUS 1050S offers superior stability, smooth operation, and exceptional cutting accuracy.

Features

• Extended Cutting Length (1050mm): The "1050" in its name signifies an impressive maximum cutting length of up to 1050mm (approximately 41 inches). This is crucial for handling the growing trend of larger format wall and floor tiles, minimizing cuts and ensuring a professional finish. For tiles up to 42mm thick, a maximum length of 1050mm is achievable, while for thicker tiles, it's typically 910mm.
• Optimal 10" (250mm) Blade: Designed to work efficiently with a 250mm (10-inch) diamond blade, providing a substantial cutting depth.
• Powerful 110V Single-Phase Motor:
  • Equipped with a robust 1.4 kW (1.8 Hp) single-phase 110V motor, providing ample power to cut through even the hardest porcelain stoneware and natural stone.
  • The 110V power supply is standard for UK construction sites, ensuring safety compliance when connected via a suitable transformer (typically a 2kVA or 3kVA continuous rated transformer is recommended).
  • The motor features thermal protection to prevent overheating during prolonged use, extending machine life.
  • Operates at a high rotation speed of 2800 RPM for fast, clean cuts.
• High Precision Cutting:

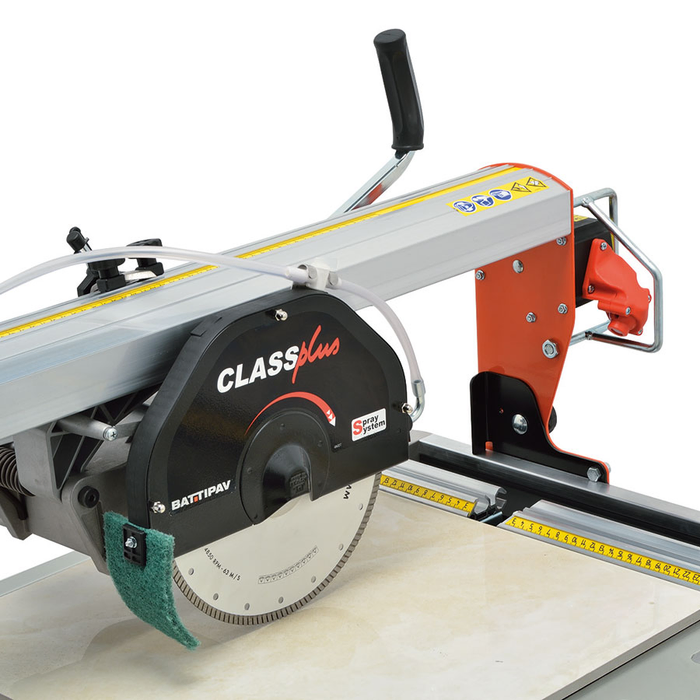

  • Sliding Cutting Head: The motor and blade assembly glide smoothly on a durable rail system, ensuring precise, consistent cuts along the entire length of the tile. This carriage system runs on steel ball bearings on interchangeable stainless steel tracks for absolute cutting precision and long life.

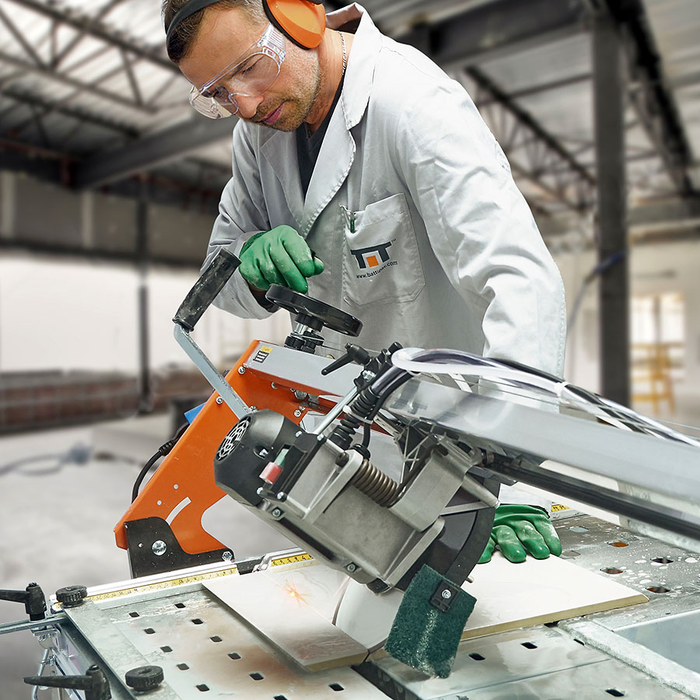

  • Tilting Engine (Bevel / Jolly Cut): The cutting head can be easily tilted to perform 45° (jolly) angle cuts, essential for creating clean mitred edges on tiles for corners or custom designs.
  • Laser Instrument (Standard on "S" versions): A built-in laser guide provides an accurate and highly visible cutting line, eliminating guesswork and significantly boosting cutting accuracy and efficiency.
• Integrated Wet Cutting System:
  • Features a high-quality recirculating water pump (Type S1/4) that continuously supplies water to the diamond blade.
  • This wet cutting system is vital for:
    • Dust suppression: Drastically reduces airborne dust (especially critical for silica dust), leading to a cleaner and healthier work environment.
    • Blade cooling: Prevents the diamond blade from overheating, which significantly extends its lifespan and maintains cutting efficiency.
    • Improved cut quality: Water acts as a lubricant, resulting in smoother, cleaner cuts with less chipping.
  • The unique shape of the water tray is designed to prevent grout and debris accumulation around the pump, ensuring the pump always uses clean water.
• Robust & Portable Design:
  • Frame: Constructed from innovative extruded aluminium, providing maximum rigidity and lightness simultaneously, making it both strong and easy to manoeuvre.

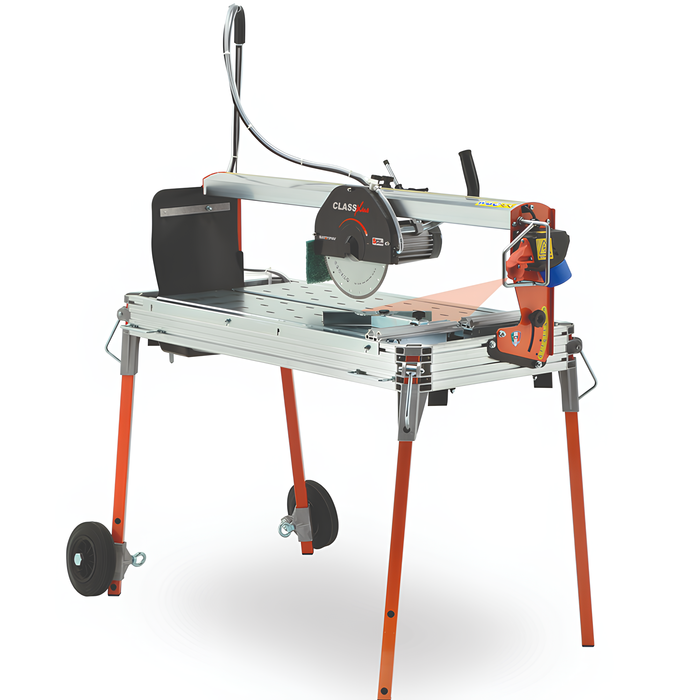

  • Folding Legs (FAST LEG system): The machine features a patented system for folding legs, making setup and storage much easier. This system ensures rigidity during operation and allows for stacking multiple machines on one pallet for reduced storage footprint and easier transport.
  • Kit Wheels (Standard on "S" versions): Integrated transport wheels allow for easy movement of the saw around the job site.
• User-Friendly Features:
  • Adjustable goniometer fence for accurate angle settings.
  • Thermal protection switch with release coil for electrical safety.
  • Amperometrical protection (overload protection).
  • (Optional accessories may include side extension benches and tile locking systems for enhanced stability on extra-large tiles).

Applications

The BATTIPAV CLASS PLUS 1050S is an indispensable tool for:

• Professional Tilers: Cutting large-format porcelain, ceramic, natural stone, and marble tiles for floors and walls in residential, commercial, and industrial settings.
• Building Contractors: For accurate tile cutting in new builds and renovation projects.
• Bathroom & Kitchen Installers: Precisely cutting tiles for wet rooms, splashbacks, and feature walls.
• Landscapers: Cutting outdoor porcelain pavers and natural stone for patios and pathways (where the cutting length and depth are suitable).
• Architectural & Design Projects: Achieving precise mitred edges and intricate cuts for bespoke designs.
