CONCRETE DIAMOND PLANER

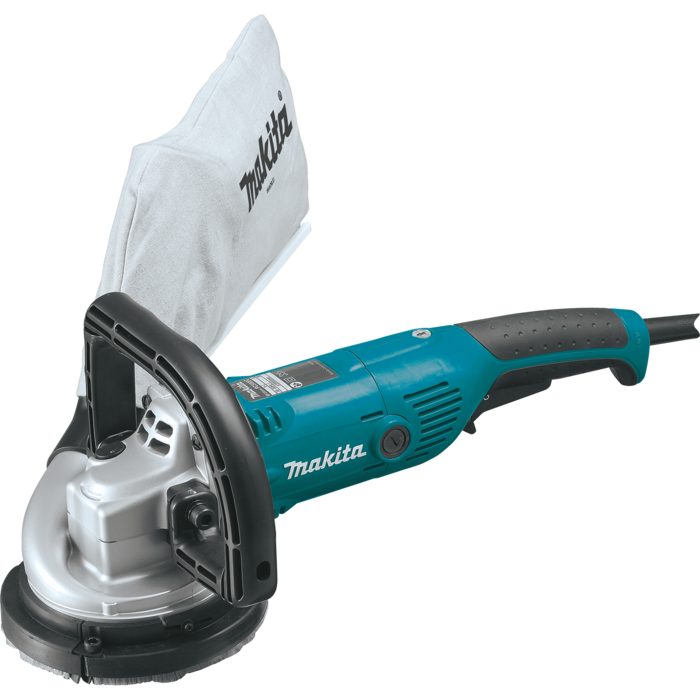

Makita PC5000C 125mm (5") Concrete Planer: Precision & Power for Concrete Surface Finishing

The Makita PC5000C is a powerful and ergonomically designed 125mm (5-inch) corded concrete planer, built to deliver precise and efficient results for a range of concrete surface preparation tasks. Ideal for smoothing uneven concrete, leveling concrete seams, removing minor imperfections, and preparing surfaces for coatings or overlays, this machine combines a robust motor with advanced electronic features for optimal performance and user comfort.

Features

• Powerful 1,400W Motor (10 AMP):* At its core, the PC5000C boasts a robust 1,400-watt (or 10-amp, depending on region/voltage) motor. This provides ample power for demanding grinding and planing operations, ensuring efficient material removal even on tough concrete.
• 125mm (5") Diamond Cup Wheel: Designed for use with a 125mm (5-inch) diamond cup wheel (often supplied with a segmented rim wheel for general purpose grinding), offering a versatile working width for effective surface coverage while allowing for access in many areas.
• Constant Speed Control: This electronic feature automatically applies additional power to the motor to maintain a consistent speed (10,000 RPM no-load speed) under load. This ensures stable performance and a smooth finish, even when encountering varying densities in the concrete.
• Soft Start Function: Suppresses the start-up reaction of the motor, providing smooth and gradual acceleration. This reduces the initial jolt, improves user control, and prolongs the life of the motor and gearing.
• Anti-Restart Protection: A vital safety feature that prevents the tool from accidentally starting up if the power is interrupted (e.g., a power cut) and then restored, if the switch was left in the "on" position. The operator must consciously reset the switch to restart the machine.
• Electronic Current Limiter: Helps protect the motor from overloading by temporarily reducing power if it detects excessive strain. This extends the tool's lifespan and prevents damage.
• Integrated Dust Extraction Guard: Features a highly effective dust extraction guard with a connection port (often for a 38mm / 1.5 inch hose). When connected to a suitable M-Class or H-Class industrial dust extractor, it allows for virtually dust-free operation. This is crucial for maintaining a clean work environment, improving visibility, and complying with health and safety regulations regarding concrete dust (silica).

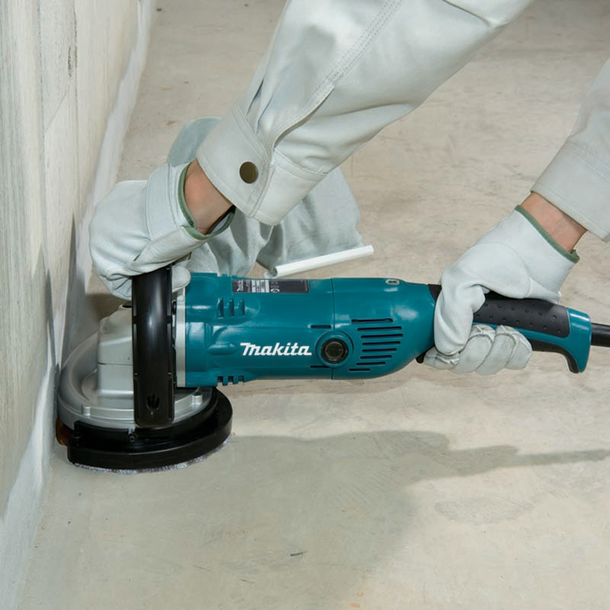

• Removable Dust Shroud Cap: A clever design feature that allows a portion of the dust shroud to be removed. This enables the machine to plane or grind flush to walls and in corners, significantly reducing the need for additional manual work.
• Ergonomic Design & Soft Grip:
  • Rubberised Soft Grip Handle: Provides increased comfort and control, reducing user fatigue during prolonged use.
  • Large Two-Finger Trigger Switch: Designed for easy operation with a lock-on function for continuous use, further enhancing comfort.
  • Top Handle (Loop Handle): An additional handle provides improved handling and stability, especially when working on floors.
• LED Power Light: Serves as a pilot light to indicate power to the tool and also alerts the user to the activation of the anti-restart function.
• Externally Accessible Carbon Brushes: Simplifies maintenance and allows for quick replacement of carbon brushes, minimizing downtime.
• Durable Construction: Built with Makita's renowned quality, featuring robust components designed to withstand the demands of concrete work.

Applications

The Makita PC5000C Concrete Planer is an essential tool for:

• Smoothing Concrete Surfaces: Removing trowel marks, screed lines, and minor imperfections.
• Leveling Concrete Seams & Joints: Creating a flat and even surface across concrete sections.
• Surface Preparation: Keying concrete for the application of new coatings, paints, sealers, or overlays.
• Removing Laitance: Grinding off the weak, dusty top layer of new concrete to expose the stronger substrate.
• Removing Thin Coatings: Efficiently taking off thin layers of paint, adhesives, or other residues (though for thicker coatings, a dedicated scarifier or a more aggressive grinder with specialized tooling might be preferred).
• Cleaning Concrete: Removing dirt, grime, and minor stains from concrete floors.
• Masons & Concrete Finishers: A common tool in their arsenal for achieving high-quality finishes.
• City Maintenance Crews: For repairing and maintaining concrete infrastructure.
