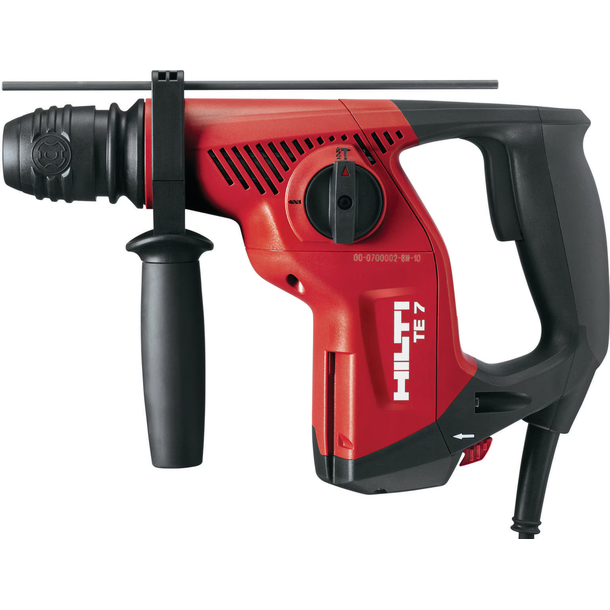

HILTI TE7-C HAMMER DRILL

Hilti TE 7-C Hammer Drill: The Versatile Workhorse for Drilling & Light Chiseling

The Hilti TE 7-C is a robust and ergonomically designed corded electric rotary hammer, engineered for reliable, high-performance drilling and light chiseling in concrete, masonry, and natural stone. This 3-mode SDS Plus (TE-C) combihammer offers a perfect balance of power, durability, and user comfort, making it an indispensable tool for electricians, plumbers, interior finishers, and general contractors.

Features

• Three-Mode Versatility: The TE 7-C provides ultimate flexibility with its easily selectable modes:
  • Hammer Drilling: For efficient and rapid drilling into concrete, masonry, and natural stone, ideal for anchor holes and through-holes.
  • Rotary-Only Drilling: The hammering mechanism is deactivated for precise drilling in wood, metal, plastics, and tile (requires an optional quick-release chuck adapter).
  • Chiseling: Allows for light corrective chiseling, breaking out small channel openings, or cutting socket recesses in concrete and masonry, making it a multi-functional tool.
• High Drilling Performance: Optimized for an impressive hammer drilling diameter range from 4 mm to 28 mm (with optimum performance up to 16 mm diameter). It delivers a strong single impact energy of 2.6 Joules (J) and a high full hammering frequency of 4020 impacts per minute (ipm), ensuring fast drilling progress.
• Robust 720W Motor: Features a powerful 720-watt motor that is robustly built and engineered for maximum reliability and a long lifespan, even under continuous heavy use.
• Ergonomic D-Grip Design: The ergonomically designed D-grip handle provides excellent control and comfort, helping to reduce operator fatigue during prolonged use, especially beneficial for downward drilling or chiseling.
• Quick-Change TE-C Click Chuck: Equipped with Hilti's quick-change TE-C (SDS Plus) chuck system, allowing for fast, tool-free bit changes and secure locking of hammer drill bits. This enhances versatility and ease of use on site.
• Mechanical Torque-Limiting Clutch: Includes a safety clutch that disengages the drive if the drill bit jams. This crucial feature protects both the operator from dangerous kickback and the tool from overload damage.
• Vibration-Absorbing Side Handle: The pivotable side handle is designed with vibration-absorbing properties, further enhancing user comfort and control.

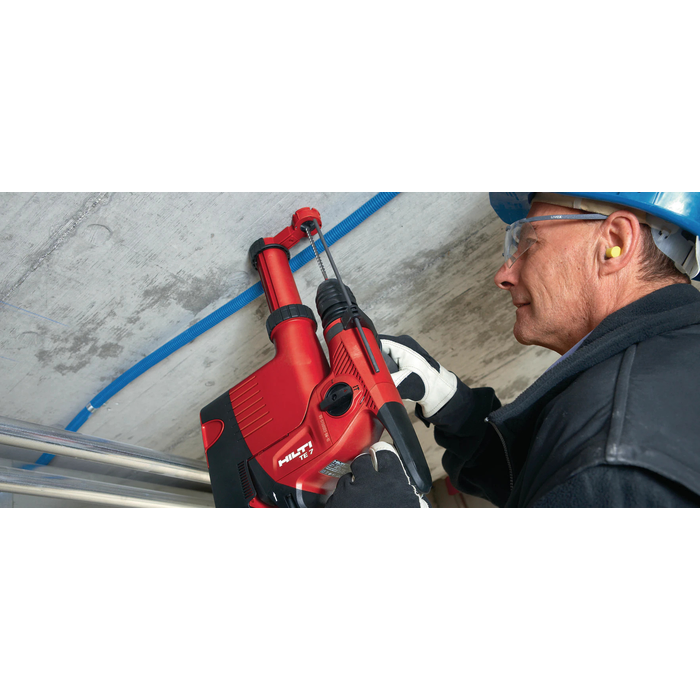

• Integrated Dust Removal System (Optional): Compatible with the Hilti TE DRS-M dust removal system. When attached and used with a suitable dust extractor, this system enables virtually dust-free drilling, significantly improving job site air quality and helping to meet silica dust regulations.
• Robust Construction: Built with a new casing design concept, the TE 7-C is engineered for exceptional durability and a long life, capable of withstanding the demanding conditions of construction sites.

Applications

The Hilti TE 7-C Hammer Drill is a versatile workhorse for:

• Drilling Anchor Holes: Creating precise anchor holes in concrete, masonry, and natural stone for various fixing applications.
• Through-Holes: Drilling through-holes for pipes, cables, and conduits.
• Corrective Chiseling: Light chiseling work for adjusting openings, removing small sections of concrete, or making channel openings.
• Cutting Socket Recesses: Efficiently cutting recesses for electrical sockets in masonry.
• Drilling in Wood and Steel: With an optional quick-release chuck, it can be used for drilling in wood (up to 20mm) and steel (up to 13mm).
• Tile Removal: Light chipping work for removing tiles from walls or floors.
• Plaster/Render Removal: Small-scale removal of plaster or render.
• Interior Finishing: A general-purpose tool for a wide range of interior fit-out tasks.
