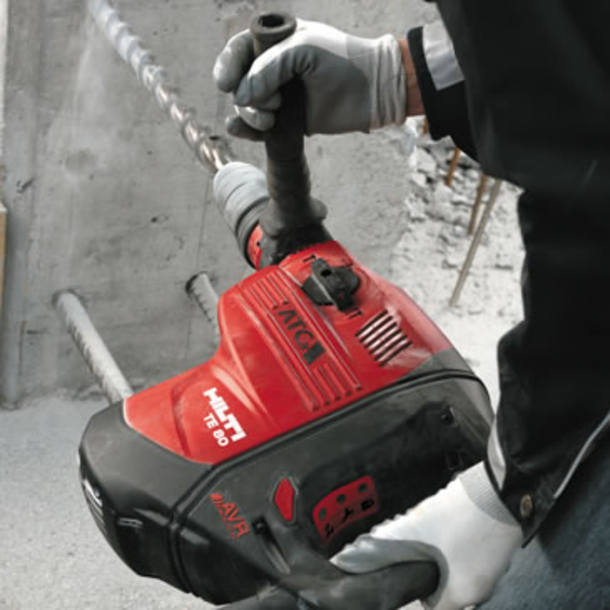

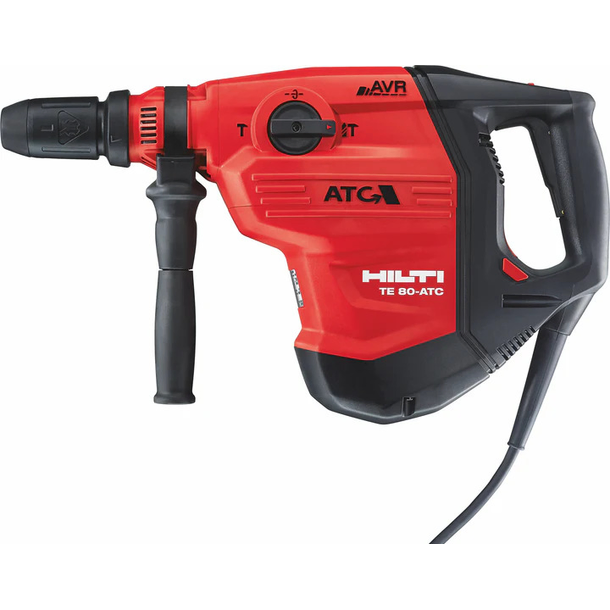

HILTI TE80 ROTARY HAMMER DRILL

Hilti TE 80-ATC/AVR Combihammer: Unrivalled Power, Precision & Safety for Concrete Drilling & Chiseling

The Hilti TE 80-ATC/AVR is a premium, heavy-duty electric combihammer engineered to deliver outstanding performance in the most demanding drilling and chiseling tasks in concrete, masonry, and even for high-torque applications in wood and steel. This tool is a testament to Hilti's commitment to innovation, integrating powerful impact energy with cutting-edge safety and comfort technologies to enhance productivity and reduce operator strain.

Features

• Exceptional Impact Energy (11.5 - 11.9 J): The TE 80-ATC/AVR delivers a formidable single impact energy (typically 11.5 J, with some sources citing up to 11.9 J). This power translates into rapid drilling progress for large diameter holes and efficient material removal during chiseling, making it a highly productive tool for heavy-duty applications.
• Active Torque Control (ATC): A critical safety feature that sets Hilti apart. ATC monitors the rotation of the tool body. If the drill bit jams and the housing begins to rotate too quickly (a common cause of injury from kickback), the ATC system instantly stops the motor. This significantly reduces the risk of sudden, uncontrolled rotation and potential operator injury, offering unparalleled user protection.
• Active Vibration Reduction (AVR): Hilti's renowned AVR system significantly reduces tool vibration at the handles. The TE 80-ATC/AVR achieves exceptionally low vibration levels (typically around 7.5 m/s² for hammer drilling and 8.5 m/s² for chiseling). This greatly reduces operator fatigue, extends permissible working times, and helps to mitigate the risk of Hand-Arm Vibration Syndrome (HAVS).
• Maintenance-Free Brushless SR Motor: The tool incorporates Hilti's highly efficient brushless SR motor design. This means no carbon brushes to change, leading to significantly longer service intervals and extended tool lifetime. It also provides consistent power output even with fluctuating supply voltage (e.g., from generators or long extension cords).
• High Drilling Speed (360-380 RPM): Offers a high rotation speed (typically 360 RPM or up to 380 RPM no-load speed). This is particularly beneficial for repetitive drilling applications, maximizing productivity on site.
• Versatile TE-Y (SDS-Max) Chuck System: Equipped with Hilti's robust TE-Y (SDS-Max compatible) chuck, designed for heavy-duty drilling and chiseling bits. This quick-change chuck system ensures fast and secure bit changes and is compatible with Hilti's extensive range of TE-Y hammer drill bits (up to 45mm solid, up to 150mm with core bits) and chisels.
• Optimum Clutch for Demanding Applications: Features an optimized mechanical clutch designed to handle the high forces associated with heavy-duty drilling and coring applications, ensuring durability and consistent performance.
• Function Selector: Easily switch between hammer drilling, chiseling, and chisel positioning modes, with a lock-on function for continuous chiseling. Some models also offer a power reduction setting (e.g., 50%) for more controlled work or less aggressive material removal.
• Electronic Safety & Convenience: Includes anti-restart protection (prevents accidental startup after a power interruption), electronic overload protection, and a service indicator LED that signals when maintenance is due.
• Optional Dust Removal System (DRS): Compatible with Hilti's TE DRS-Y or TE DRS-D dust removal systems. When connected to a suitable H-Class dust extractor, these systems effectively capture hazardous silica dust, significantly improving job site air quality and compliance with health and safety regulations.

Applications

The Hilti TE 80-ATC/AVR is a versatile powerhouse for a wide range of heavy-duty drilling and chiseling applications:

• Heavy-Duty Hammer Drilling: Creating large diameter holes (12-40mm optimal, up to 45mm solid, 150mm core bits) in concrete, reinforced concrete, masonry, and natural stone for rebar dowels, anchors, and penetrations.
• Breaching & Demolition: Using pointed, flat, wide-flat, and mortar chisels for breaking concrete, breaching walls, and general demolition tasks.
• High-Torque Drilling: Drilling larger diameter holes in wood and steel (with appropriate chuck adapters and drill bits).
• Core Drilling: For dry coring in masonry and concrete, particularly for plumbing and electrical installations.
• Heavy Renovation Work: Suitable for a wide range of renovation projects where powerful drilling and breaking are required.
