MICRO POWERED ACCESS PLATFORM

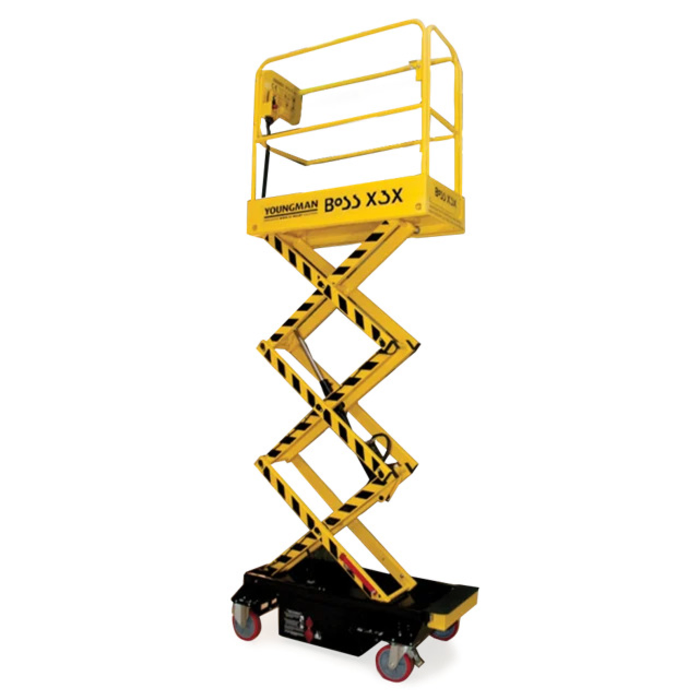

BoSS X3X – 5.2m Electric Scissor Lift: Compact Power for Low-Level Access

The BoSS X3X is a tough, professional, and highly manoeuvrable electric scissor lift engineered for efficient and safe low-level access. With its remarkably compact dimensions and impressive working height, the X3X is perfectly suited for a multitude of tasks in space-restricted or sensitive environments, providing a stable and secure platform for personnel and tools.

Features

• 5.20m (17 ft 1 in) Max. Working Height: Provides ample vertical reach for common low-level access tasks, allowing operators to work on ceilings, high walls, electrical installations, and shelving.
• 3.20m (10 ft 6 in) Max. Platform Height: The height of the platform floor when fully extended.
• Ultra-Compact Footprint: With an overall width of just 0.76m (2 ft 6 in) and a length of around 1.41m (4 ft 8 in), the X3X is specifically designed to fit through standard doorways, into passenger lifts, and navigate narrow corridors and congested areas with ease.
• 240 kg (529 lbs) Platform Capacity: Can safely lift up to 240 kg, accommodating one or two operators along with essential tools and materials, enhancing productivity.
• Electric Battery Power: Powered by a 24V DC battery system (typically 2 x 12V 100Ah sealed gel batteries), providing quiet, emission-free operation. This makes it ideal for indoor use in sensitive environments such as hospitals, schools, offices, retail outlets, and food processing facilities.
  • Long Battery Life: Capable of many lifts and descents (e.g., >225 at max load) and significant driving distance on a single charge.
  • Integrated Charger: Features an automatic multi-voltage (110V/240V) charger for convenient recharging. Full charge typically takes around 10 hours.
• Lightweight Design: Weighing approximately 370 kg - 495 kg (depending on configuration), the X3X is light enough to be transported on a standard tail lift and causes minimal impact to delicate flooring surfaces, including mezzanine floors.
• Excellent Manoeuvrability:
  • Self-Propelled: Drives from the platform, allowing the operator to quickly reposition the machine without lowering, saving time and effort.
  • Zero Turning Radius: Many versions can turn within their own footprint, offering exceptional agility in tight spaces.
  • Straight Line Driving: Features a swivel castor lock for precise straight-line driving.
• Enhanced Safety Features:
  • All-Round Guardrail & Self-Closing Gate: Provides a secure working environment with toe boards to prevent dropped objects.
  • Tilt Sensor & Overload Protection: Automatically prevents operation if the machine is on an unsafe incline (typically max 1.5° longitudinal/lateral inclination) or if the platform capacity is exceeded.
  • Pothole Protection Activation: During ascent, mechanisms engage to protect against unexpected drops into potholes.
  • Emergency Platform Lowering: A manual override allows the platform to be lowered safely in case of power failure.
  • Emergency Stop Buttons: Located on both the platform and ground control panels.
  • Electromagnetic Brakes: On drive motors, ensuring the machine remains static when not driving, including on inclines.
  • Low Battery Protection System: Alerts the operator and restricts functions if battery charge drops too low, preventing complete discharge.
  • Automatic Brakes: Engaged when elevated or when not driving.
• Durable Construction: Built with robust all-steel construction, ensuring reliability and longevity even under demanding use.
• User-Friendly Controls: Intuitive controls make operation straightforward, even for those new to powered access equipment.

Applications

The BoSS X3X is a highly versatile electric scissor lift, ideal for:

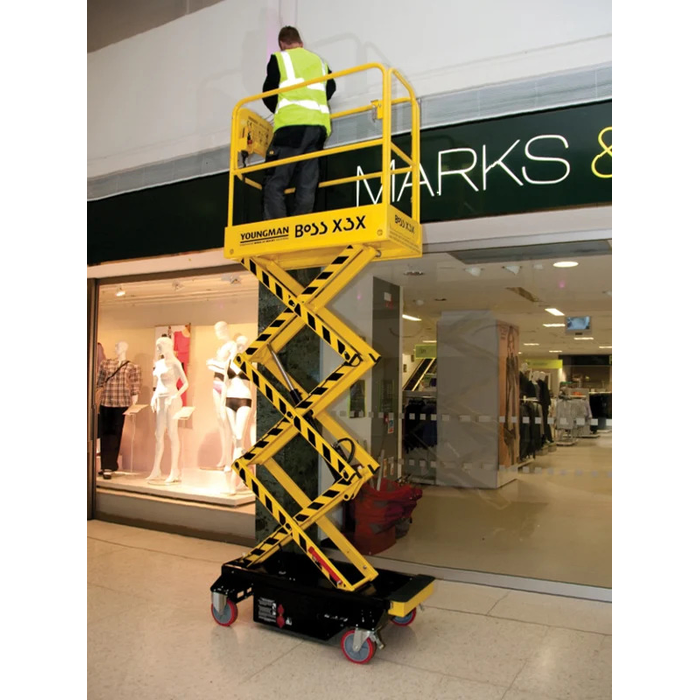

• Indoor Maintenance: Changing light bulbs, ceiling tile replacement, general repairs, cleaning, and HVAC work in offices, schools, hospitals, airports, and retail environments.
• Fit-Out & Strip-Out: For interior construction work, including electrical installations, plumbing, painting, decorating, and shop fitting.
• Facilities Management: Routine maintenance tasks in commercial and public buildings where quiet operation and minimal disruption are essential.
• Warehousing & Logistics: Accessing shelving for stock picking, inventory management, and general maintenance in narrow aisles.
• Sensitive Environments: Ideal for cleanroom environments, data centres, and food preparation areas due to its electric power and non-marking tyres.
• General Low-Level Access: A safer and more efficient alternative to ladders and podium steps for numerous tasks up to 5.2 meters.
