PS 85 HILTI WALL SCANNER

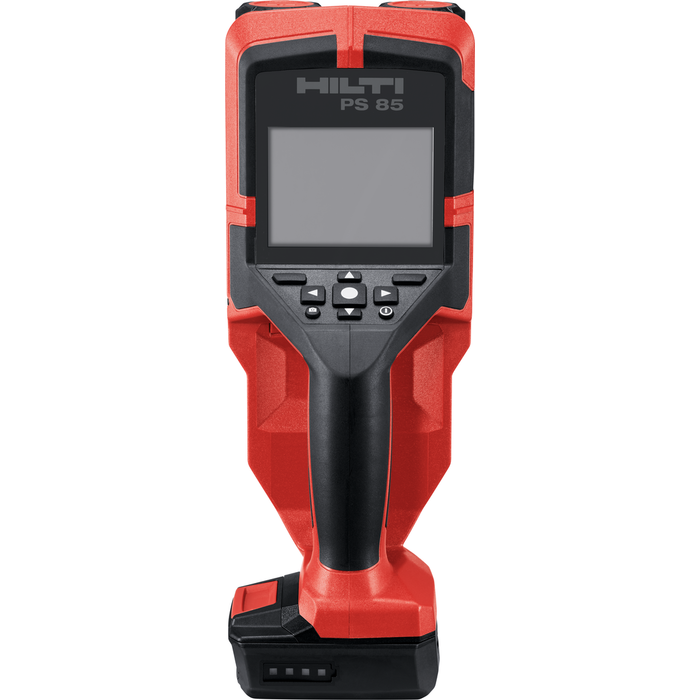

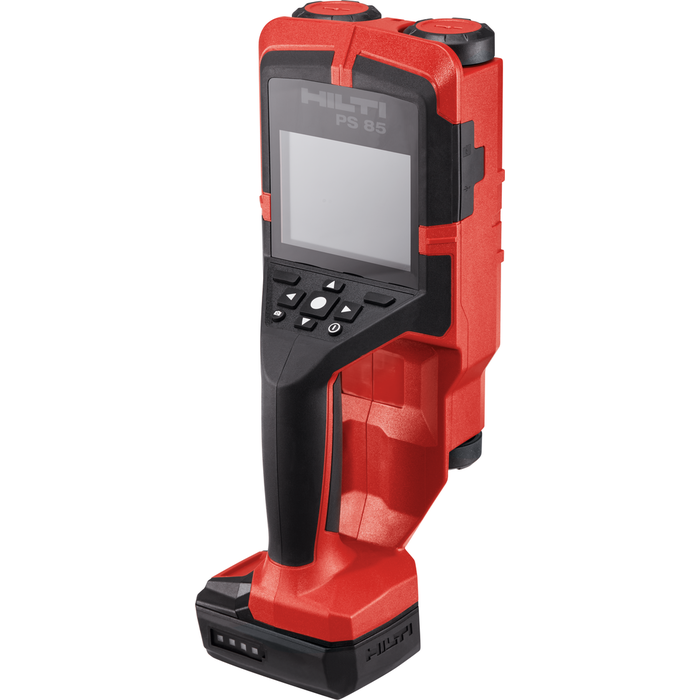

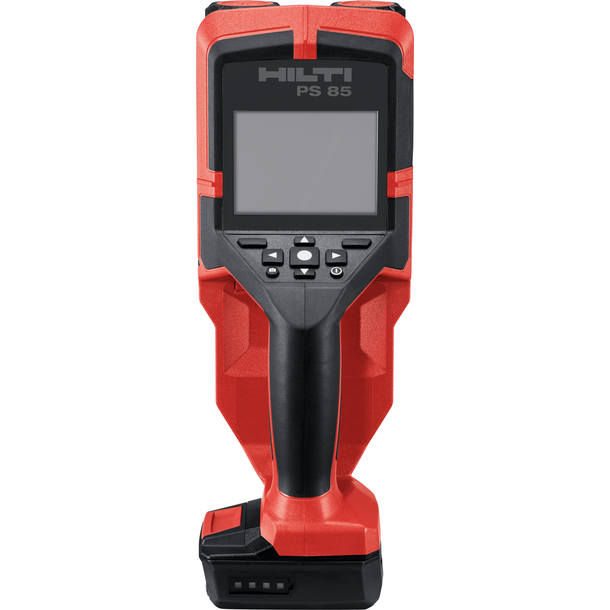

Hilti PS 85 Wall Scanner: Your Eyes Behind the Wall for Safe Drilling

The Hilti PS 85 Wall Scanner is a robust and intuitive multi-detector, purpose-built to provide crucial information about hidden objects within concrete, masonry, drywall, and tiled surfaces. By reliably locating rebar, live wires, wooden substructures, metal pipes, and plastic pipes, the PS 85 helps tradespeople work safely and efficiently, preventing costly damage and potential injuries from striking unseen elements. Its design prioritizes ease of use and durability, making it an essential tool for hit prevention on any job site.

Features

• Comprehensive Object Detection:
  • Utilizes multiple sensors and radar technology to detect a wide array of embedded objects, including:
    • Rebar (reinforcing bars)
    • Live electrical wires (AC current)
    • Metal pipes (e.g., copper, steel)
    • Plastic pipes (e.g., PVC, PEX)
    • Wooden substructures (e.g., studs, joists)
    • Other non-ferrous metals and voids.
  • Can estimate the material type and often the size of the hidden objects.
• Impressive Detection Depth:
  • Offers a maximum detection depth of up to 200 mm (7.9 inches), allowing it to penetrate through various wall thicknesses and locate objects deep within the structure.
  • Note: The reliable detection depth for objects like metal is typically around 85mm, and for other objects around 80mm in dry concrete, while overall detection for localization can go up to 200mm depending on material and object size.
• High Localization Accuracy:
  • Provides excellent localization accuracy of ±5 to 10 mm.
  • Accuracy to the center of the object is typically ±5 mm.
  • Can distinguish between objects that are a minimum of 40 mm apart.
• Versatile Material Scanning:
  • Capable of scanning through a wide range of common construction materials, including:
    • Concrete (both wet and dry)
    • Brick
    • Plasterboard / Drywall
    • Tiles
• User-Friendly Interface & Display:
  • Features a large, clear display with intuitive menus, making it easy to operate even for new users.
  • Provides real-time visual feedback on the screen, showing the location and estimated depth of detected objects.
  • Simple color-coding identification helps distinguish between different object materials.
• Data Export Capability:
  • Equipped with an SD card slot for exporting scan data (approx. 200 scans can be stored on SD card, 10 on internal flash memory). This allows for documentation, analysis, or sharing of scan results.
• Ergonomic & Durable Design:
  • Lightweight (approx. 1 kg with batteries) and ergonomically designed with a large handle, ensuring a firm and comfortable grip during scanning.
  • Shock and dust-resistant to withstand the challenging conditions of construction sites, enhancing durability and reliability.
• Hilti 12V Li-ion Battery Platform:
  • Powered by Hilti's common 12V Li-ion battery platform (compatible with 2.6 Ah and 4.0 Ah batteries), allowing for seamless compatibility with other Hilti 12V cordless tools on site. A typical operating time is around 8 hours.

Applications

The Hilti PS 85 Wall Scanner is an indispensable tool for preventing damage and ensuring safety across numerous applications:

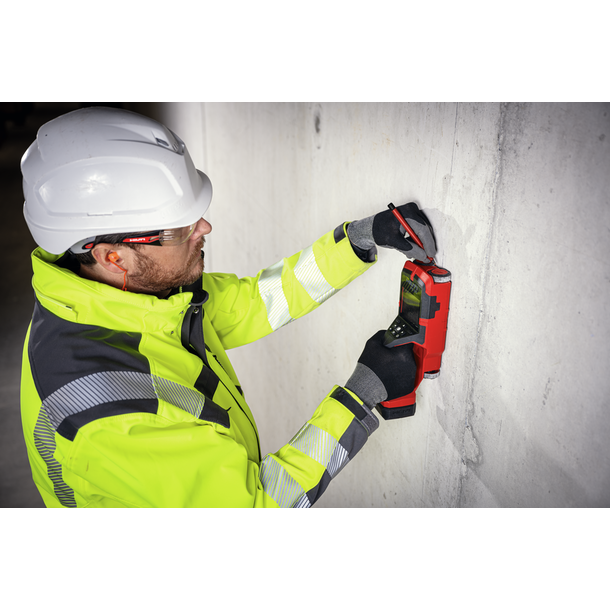

• Drilling & Coring: Locating embedded objects to prevent hitting rebar, live wires, or pipes when drilling holes for anchors, core drilling for pipes or ducts, or creating openings.
• Cutting & Slitting: Ensuring a clear path before cutting channels for electrical conduits, plumbing pipes, or other services in walls or floors.
• Renovation & Remodeling: Identifying existing structural elements, wiring, and plumbing before making alterations to walls or ceilings in older buildings.
• Installation Work: Safely installing fixtures, fittings, and services by confirming the absence of hidden obstructions.
• Damage Prevention: Avoiding costly repairs to structures, tools (e.g., drill bits, core bits), and electrical systems.
• Safety Compliance: Enhancing site safety by reducing the risk of electrocution or striking critical infrastructure.
