PUDDLE PUMP

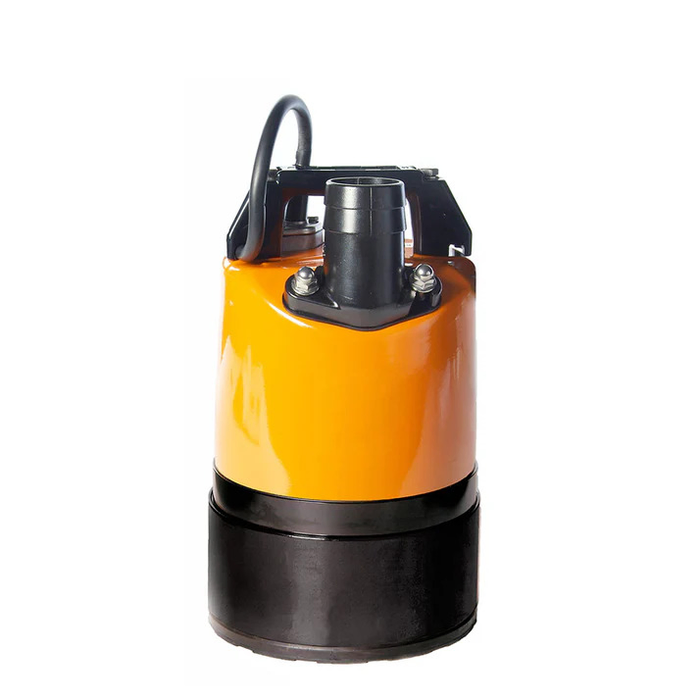

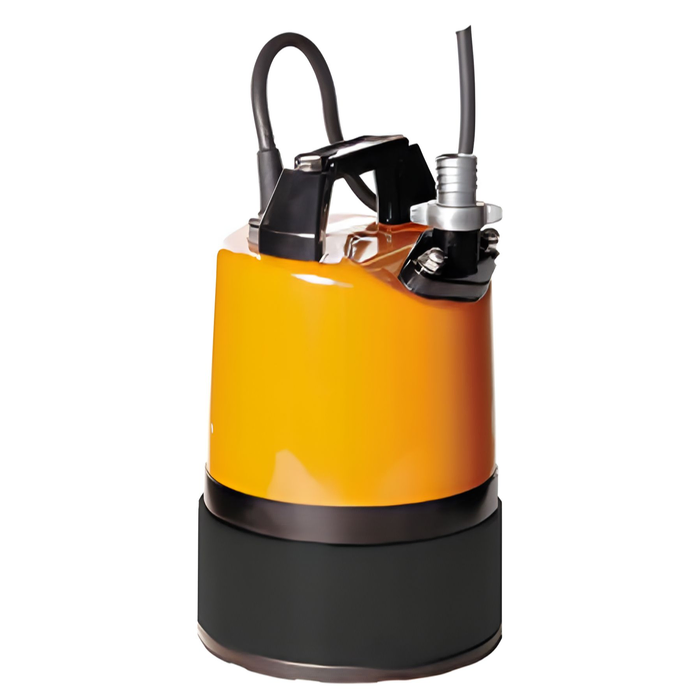

Tsurumi LSC1 Puddle Pump 110V

The Tsurumi LSC1 Puddle Pump is a highly innovative and remarkably efficient submersible pump specifically engineered to remove unwanted water down to extremely shallow levels. Unlike conventional submersible pumps, the LSC1 can dewater flat surfaces to a residual depth of just 1mm, making it an indispensable tool for clearing puddles and minimizing standing water. This 110V model is robustly constructed for professional use on construction sites, in basements, on flat roofs, and for flood clean-up operations, where its ability to leave surfaces virtually dry is invaluable. It combines Tsurumi's renowned durability with a unique dewatering design, ensuring reliable performance in challenging environments.

Features

• "Puddle Pump" Capability: Unique design allows it to pump water down to a residual level of just 1mm, leaving surfaces virtually dry and significantly reducing drying times.
• 110V Operation: Designed for safe use with standard 110V site power supplies, meeting regulations for UK construction and industrial applications.
• Robust Construction: Features a durable urethane rubber impeller and a pump casing that includes a rubberised bottom, providing excellent resistance to wear from abrasive particles and ensuring a long service life.
• Highly Efficient: Despite its compact size, it offers a good flow rate (typically up to 100-110 litres per minute) and a respectable head (up to 7-8 meters), for rapid water removal.
• Automatic Operation (Optional): Can be fitted with a float switch for automatic on/off operation in deeper water, though its primary strength is shallow dewatering.
• Non-Return Valve: Often integrated or available as an accessory to prevent backflow once pumping stops, maintaining the low water level.
• Double Mechanical Seal: Equipped with a durable mechanical seal (running in an oil chamber) to protect the motor from water ingress.
• Patented Oil Lifter: Tsurumi's unique device ensures continuous lubrication of the mechanical seal, even when the pump operates at very low water levels or for extended periods with intermittent water.

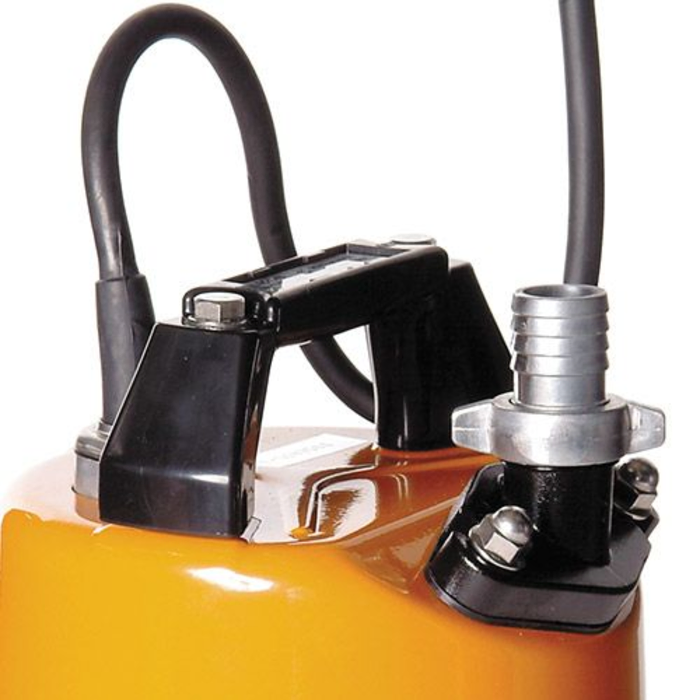

• Top Discharge & Motor Cooling: The top discharge design creates a water and air cooling channel around the motor, enabling efficient heat dissipation and allowing the pump to operate continuously at low water levels or even in "dry-run" conditions without overheating.
• Compact & Portable: Lightweight (approx. 10.4 kg) and small footprint for easy handling, transport, and deployment in tight spaces.

Applications

The Tsurumi LSC1 Puddle Pump 110V is essential for:

• Flat Roofs: Removing standing water from flat roofs after rain to prevent damage and reduce load.
• Basements & Cellars: Clearing residual water after flooding or leaks, leaving the area almost dry.
• Construction Sites: Drying out excavations, lift shafts, and uneven surfaces with shallow puddles.
• Sports Facilities: Clearing water from tennis courts, sports pitches, and other outdoor hard surfaces.
• Industrial Spillage Cleanup: Quickly removing liquid spills in factories, warehouses, and workshops.
• Marine & Boats: Dewatering bilges or small boats.
• General Maintenance: Any situation requiring the removal of water down to minimal levels.
