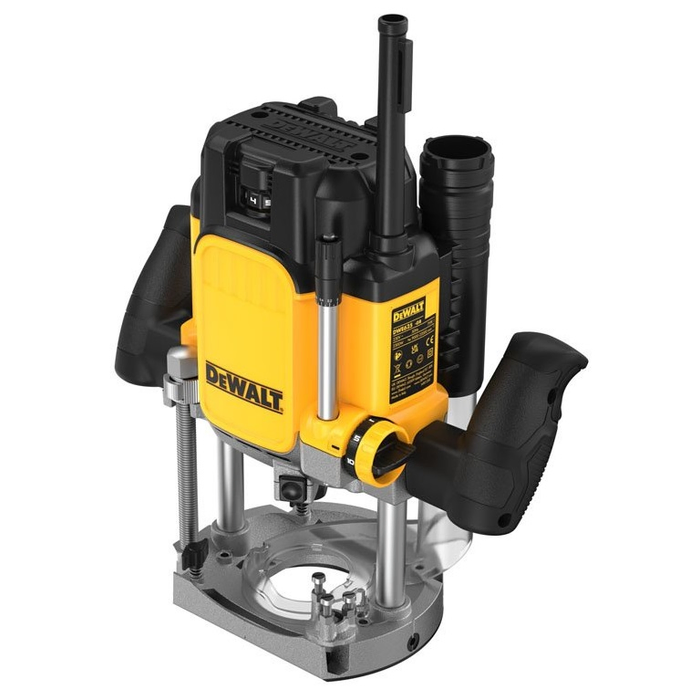

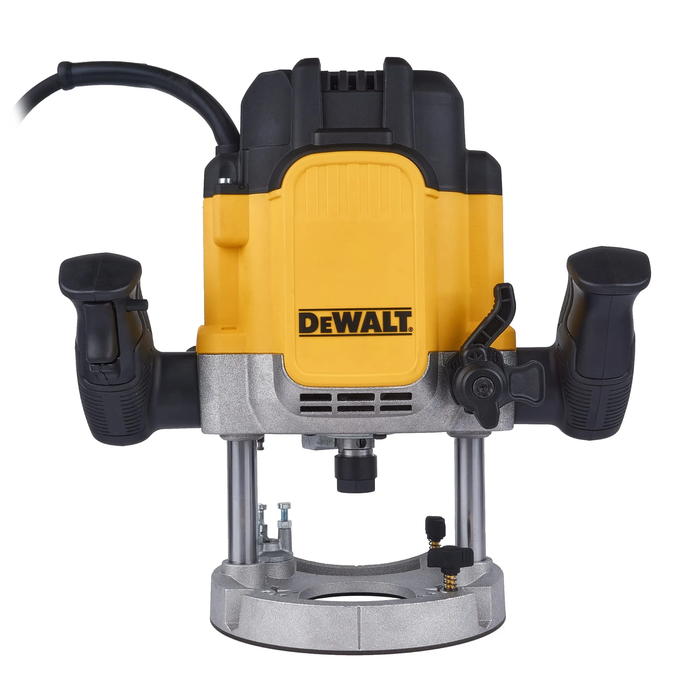

DeWalt DWE625 Plunge Router: Power, Precision, and Control for Professionals

The DeWalt DWE625 Plunge Router stands as a testament to DeWalt's commitment to delivering high-performance, durable tools for demanding professional woodworking tasks. With a formidable motor and advanced features, it provides woodworkers, carpenters, and kitchen fitters with the power, accuracy, and control needed to achieve exceptional results in a wide array of routing applications.

Features

• Powerful 2300W (3 HP) Motor:
  • Equipped with a robust 2300-watt (or 3 peak HP) motor, providing immense power to tackle the toughest materials and applications, including cutting worktops, morticing, and heavy profiling in hardwoods, softwoods, aluminium, and plastics.
  • The high power ensures the router maintains speed under load, for a consistent, quality finish.
• Full-Wave Electronic Variable Speed Control:
  • Features electronic variable speed control with a range of 9,000 to 22,000 RPM (no-load speed). This allows the user to precisely match the cutter speed to the material being routed and the specific application, optimizing finish quality and extending cutter life.
  • The "full-wave electronic" aspect means the selected speed is maintained consistently even when the router is under load, preventing bogging down.
• 80mm Plunge Stroke:
  • Offers a generous 80mm (3.15 inches) maximum plunge depth, enabling deep cuts, mortices, and other applications requiring significant vertical travel.
• Precision Depth Adjustments:
  • Features a rack and pinion depth adjuster with a magnified scale and micro-fine bit depth adjuster. This combination allows for extremely fast, accurate, and repeatable depth settings.
  • A 3-stage adjustable turret stop enables stepped or repeated plunge cuts at various depths without time-consuming re-setting.
• Soft Start Feature:
  • Includes a soft start function, which gradually brings the motor up to speed. This eliminates the initial jolt and torque reaction upon start-up, preventing small movements that could misalign the cutter, especially critical with such a powerful machine.
• Integrated Dust Extraction (AirLock Compatible):
  • Features an improved Airlock compatible dust extraction port. This allows for a quick and secure connection to a DeWalt dust extractor, ensuring highly effective dust management for a cleaner and safer work environment and better visibility of the workpiece.
  • The clear lower dust tube and cowl also contribute to an unobstructed view.
• Twin LED Work Lights:
  • Equipped with two powerful, bright white LED lights with an optimally aligned light cone. These illuminate the workpiece, removing shadows and providing excellent visibility of the cutting area.
• Ergonomic Handles & Control:
  • Designed with large, ergonomic handles for comfortable and optimal control. The on/off switch and plunge lock lever are conveniently located at the fingertips for easy access and control during operation.
  • Features a one-touch plunge lock that quickly engages or disengages the plunge mechanism without losing the depth setting.
• Single-Wrench Bit Changes:
  • A spindle lock button allows for quick and easy cutter changes with a single wrench, minimizing downtime.
• Versatile Collet Capacity:
  • Comes with 1/4" (6.35mm) and 1/2" (12.7mm) collets, providing versatility to accommodate a wide range of router bits. Some models may also include a 8mm collet.
• Robust Construction & Compatibility:
  • Features a two-column precision guide with large phosphor bronze bushes for smooth and accurate plunge action.
  • The high-quality die-cast aluminium housing ensures durability.
  • Shares the same base geometry as the previous DW625 model, ensuring compatibility with existing guide bushes and attachments.
  • Includes a no-volt release (NVR) switch to prevent accidental startup after a power interruption, enhancing safety.

Applications

The DeWalt DWE625 Plunge Router is an indispensable tool for a wide range of professional woodworking and construction tasks:

• Worktop Cutting: Precisely cutting apertures for sinks, hobs, and creating jointing recesses in kitchen worktops.
• Morticing: Creating mortices for hinges, locks, and various joinery applications.
• Edge Profiling: Producing decorative edges (e.g., ogee, chamfer, round over) on timber, boards, and worktops.
• Grooving and Rebating: Cutting grooves for shelving, dados, or rebates for joinery.
• Template Work: Using guide bushes with templates for intricate routing tasks like hinge recesses, dovetails, or decorative inlays.
• General Carpentry: Versatile for a broad spectrum of carpentry tasks on site or in the workshop.
• Cabinet Making: Precision routing for cabinet doors, drawer fronts, and carcass construction.
• Siding, Windows, and Doors: Various routing applications related to installing or modifying these elements.
• Plastics and Aluminium: Capable of routing in softer metals and various plastics with appropriate cutters and speeds.
